Adjusting Rear Spoiler In Z Direction

1. Extend the rear spoiler fully.

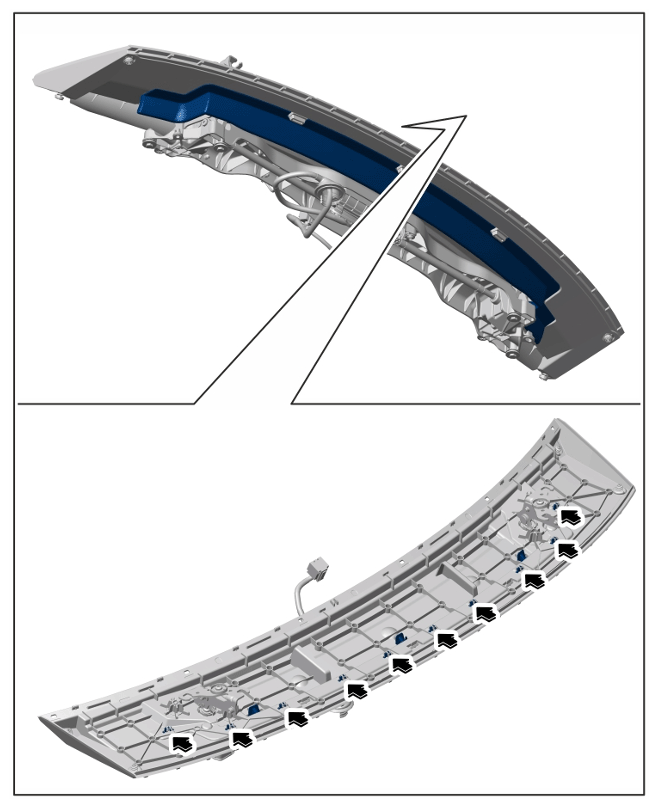

2. Unclip cover using a suitable tool -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

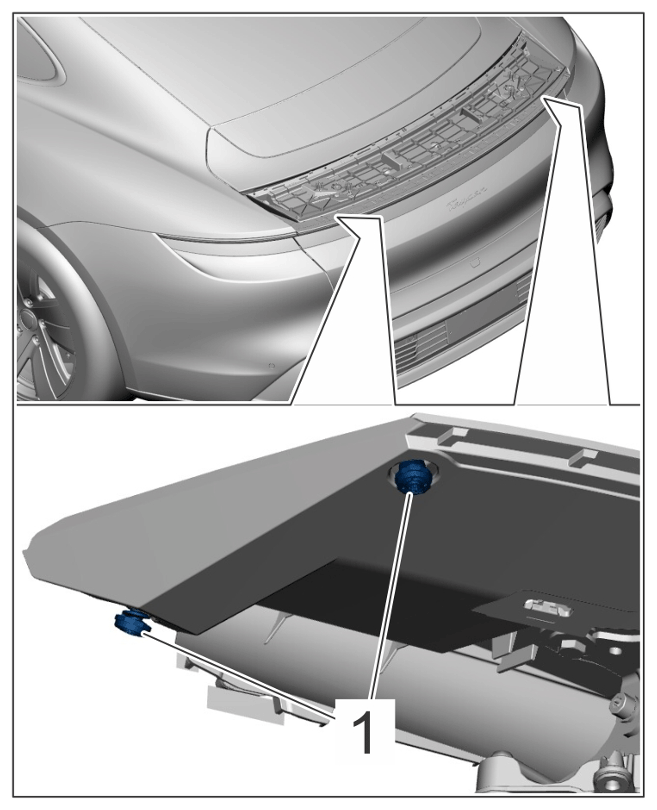

3. Loosen screws -1-  and tighten again hand-tight.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws

4. Retract rear spoiler and fit rear spoiler (upper part) on rear spoiler.

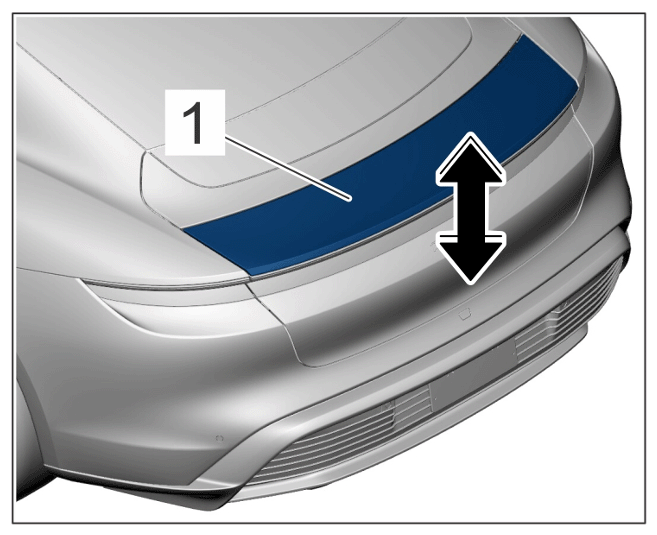

5. Set gap dimensions by moving -Arrow-  the rear spoiler -1-  .

   > 6X00IN GAP DIMENSIONS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear spoiler

6. Extend rear spoiler and tighten screws to > Tightening torque 8 Nm  .

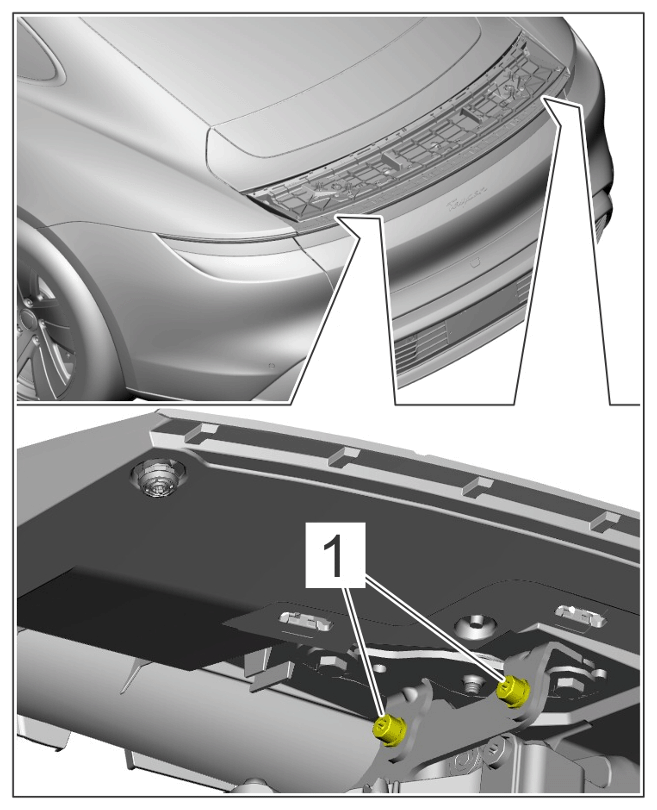

7. Move adjusting pads -1-  until they are touching the rear lid and light panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting pads
