Removing Rear Logo: Notes

Information

Logos cannot be re-used.

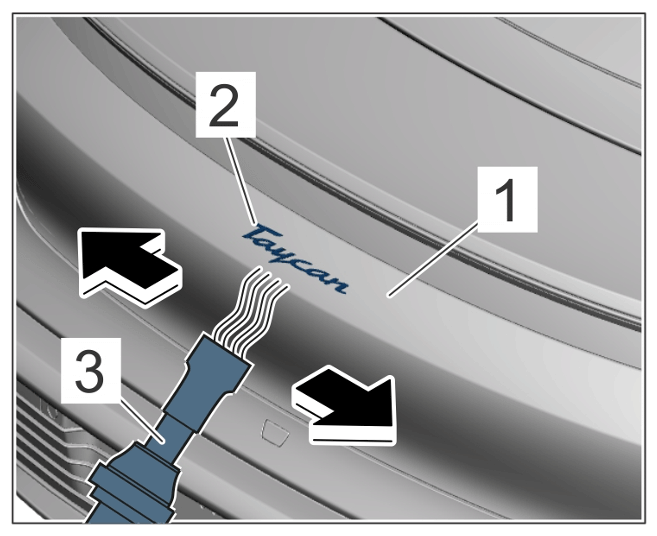

  1. Heat the area -1-  around the logo -2-  using > V.A.G 1416 - hot-air blower -3-  .
    G15564353Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Area around logo

    Information

    Prise off logos carefully so as not to damage the paintwork.

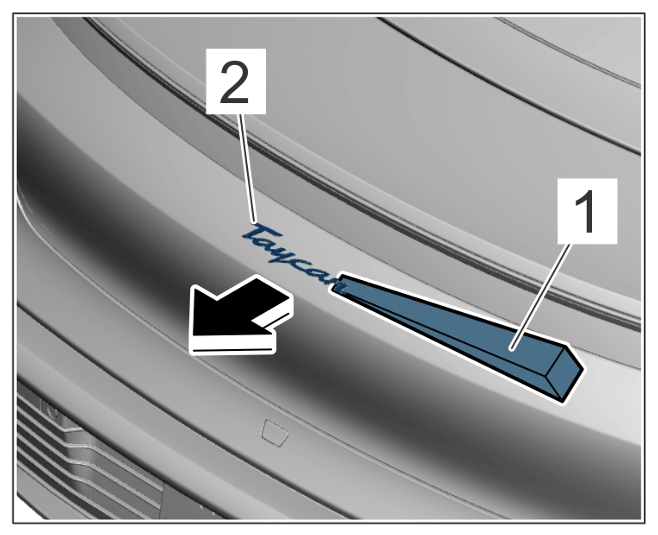

  2. Use a plastic spatula -1-  to pry off the logo -2-  .
    G15564354Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Logo

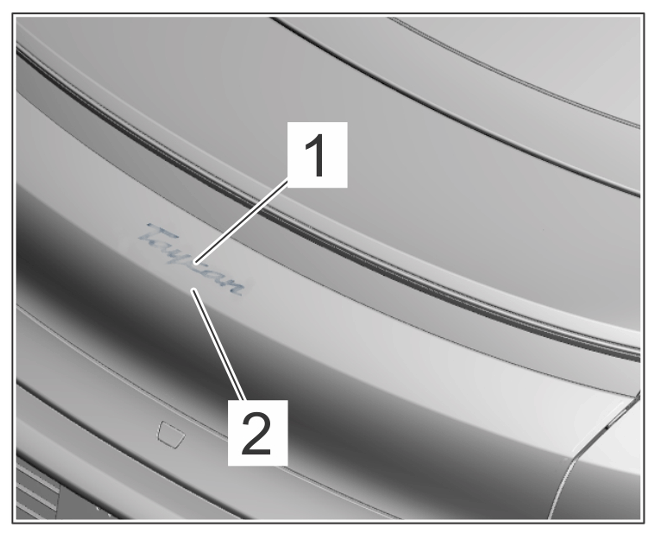

  3. Remove residual adhesive -1-  around the logo -2-  using silicone remover.
G15564355Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Area around logo
