Install Roof Moulding

Information

Clips cannot be removed without damaging them and must be replaced.

1. Pre-position clips on the roof joint cover strip. Make sure that clips are positioned exactly at the same height as the fastening points on the body.
2. Install -1-  roof joint cover strip.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

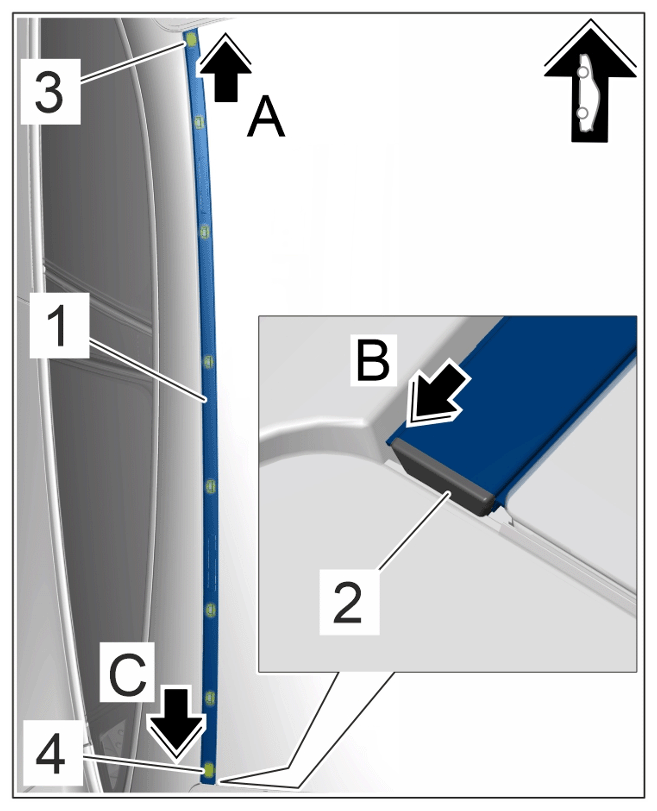

Roof moulding

1. 2.1 Guide -Arrow A-  roof joint cover strip -1-  into the front clip -3-  .
2. 2.2 Position end cap -2-  behind the rear clip -4-  .
3. 2.3 -1-  Guide roof joint cover strip -4-  into the rear clip -Arrow C-  and clip it -2-  into the end cap -Arrow B-  .
4. 2.4 Clip in roof joint cover strip -1-  from the centre of the roof to the outside.
