Remove Roof Moulding

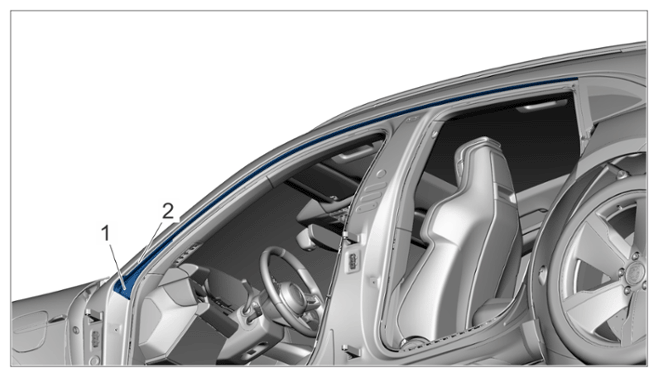

1. Pull seal -1-  off the roof trim -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Seal

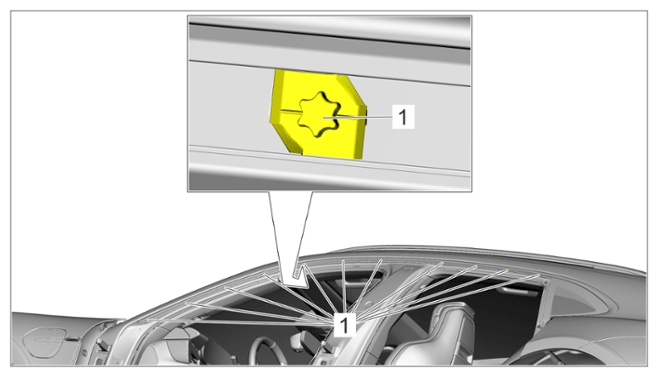

2. Turn locking mechanisms -1-  on the retaining clips 90° anti-clockwise.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining clips

   Information

   Cover add-on parts and adjacent areas.

   Protect components against scratching and damage.

3. Remove roof moulding -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Moulding

1. 3.1 Swivel out roof trim -1-  in direction of -Arrow A-  .
2. 3.2 Pull roof trim -1-  off the side window trim frame -3-  in direction of -Arrow B-  . Take care not to damage the wheel hub -2-  .
