66 Exterior Equipment -- Y1A - TAYCAN (Y1A)
>>
WM, 660719 Removing And Installing Front Logo
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

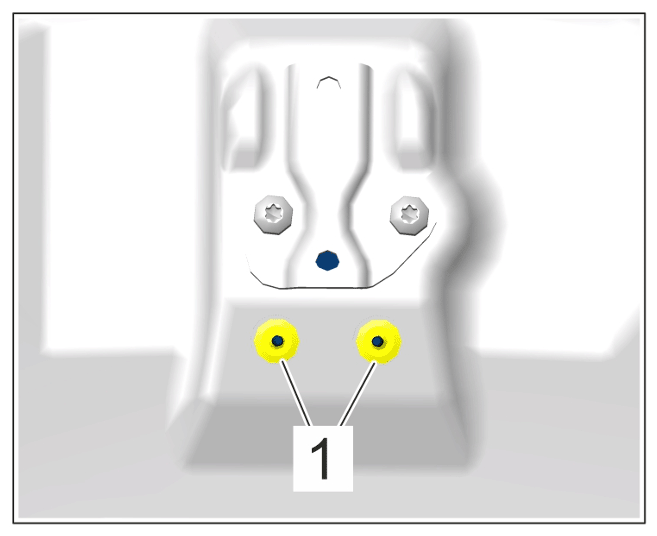

Nuts securing front logo to front lid
Item 1
Tightening torque
1.3 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
