Removing Front Logo

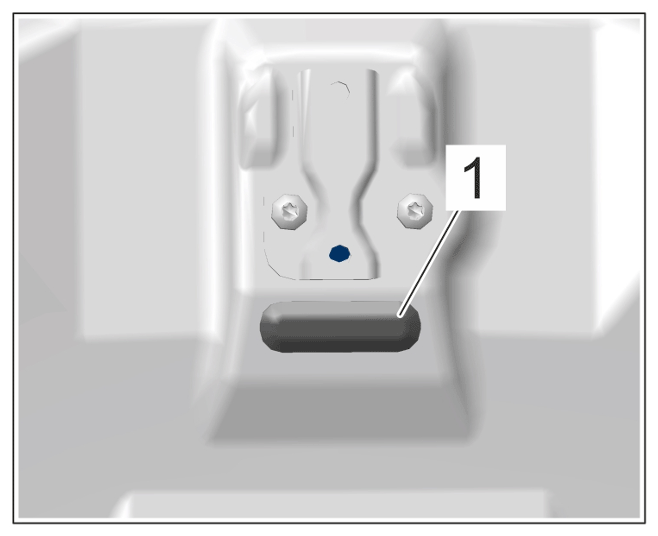

1. Unclip cover -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

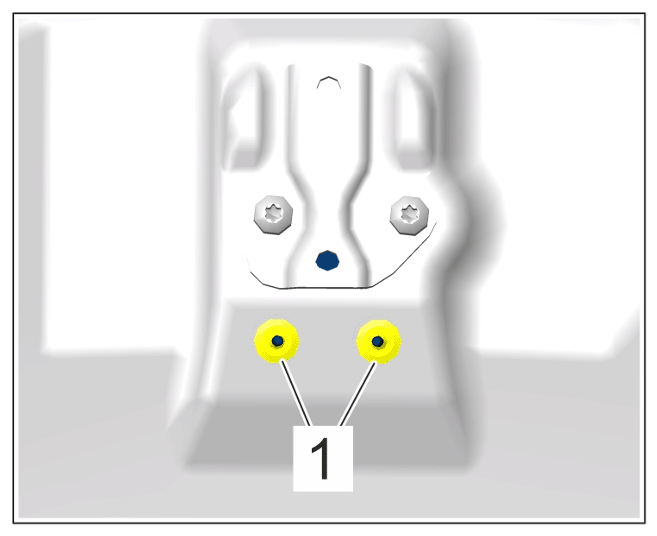

2. Unscrew nuts -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Nuts

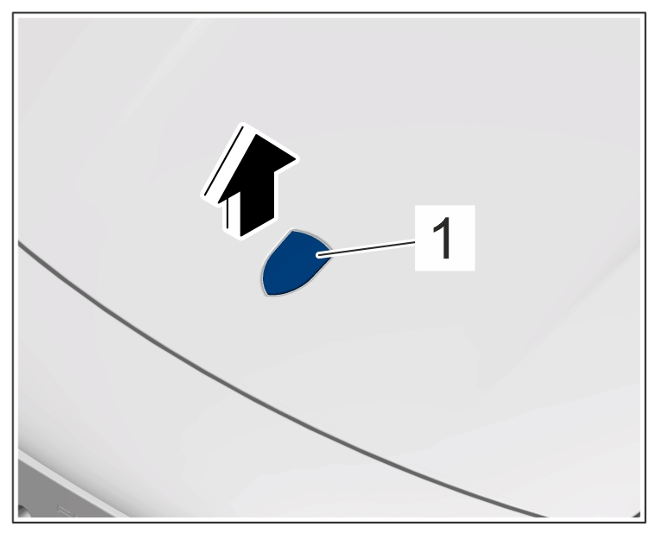

3. Remove front logo -1-  and base -arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front logo
