Removing Front Air Grille (At The Left)

1. Remove air guide -6-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

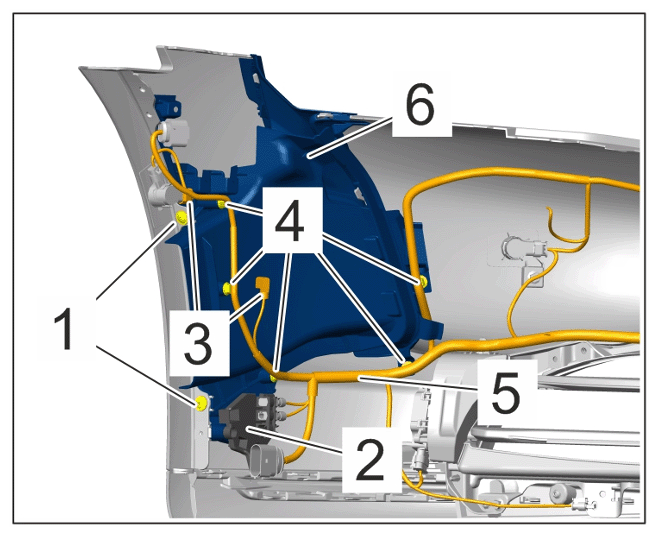

   Air guide

   1. 1.1 Unscrew and remove screws -1-  .
   2. 1.2 Remove holder -2-  .
   3. 1.3 Release and unplug electric plug connections -3-  .
   4. 1.4 Unclip clips -4-  .
   5. 1.5 Set electric wire harness -5-  aside.
   6. 1.6 Swivel out the air guide -6-  .
2. Loosen locking lugs -1-  and remove front air grille (at the left) -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

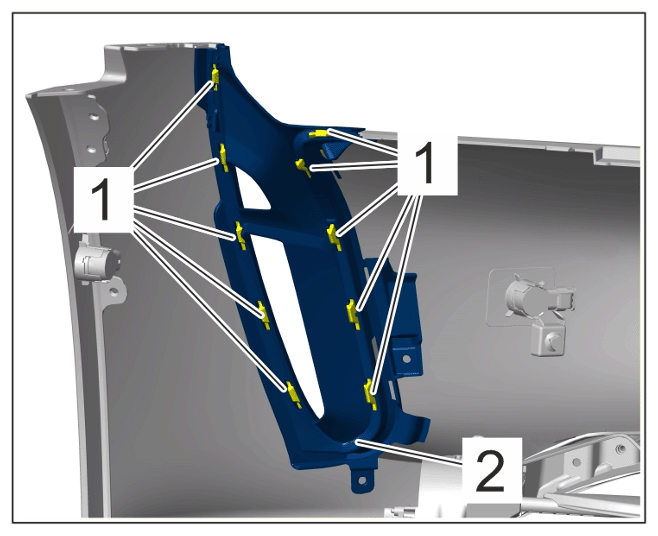

Front air grille (at the left)
