Removing Front Spoiler (Side)

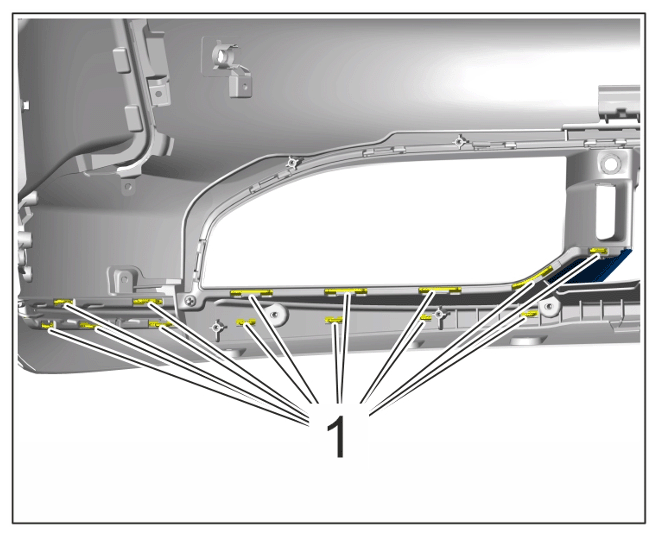

  1. Loosen locking lugs -1-  .
    G15564315Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locking lugs

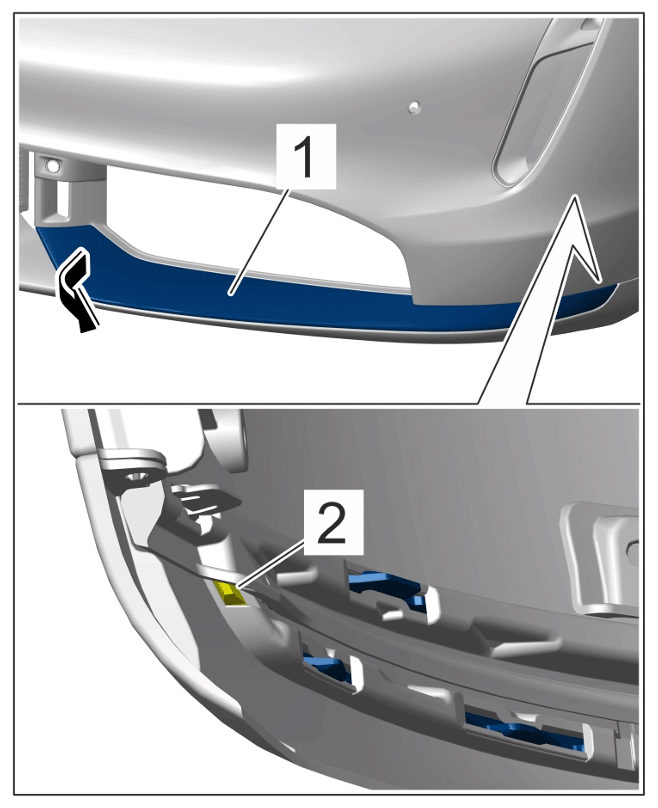

  2. Swivel out front spoiler (side) -1-  (-Arrow-  ) until the centring pin -2-  is released.
    G15564316Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Centring pin

  3. Remove front spoiler (side).
