Removing Rear Retaining Strip At The Centre And Rear Retaining Strip For Tail Light

Information

The number of electric plug connections can vary, depending on equipment.

Information

The following steps are shown on the left-hand side of the vehicle as an example. The procedure is identical on both sides of the vehicle.

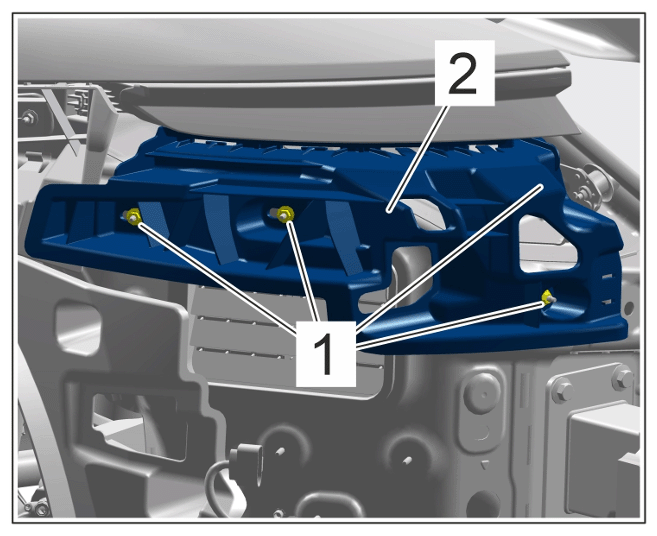

1. Screw off nuts -1-  on rear retaining strip at the centre -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear retaining strip, centre

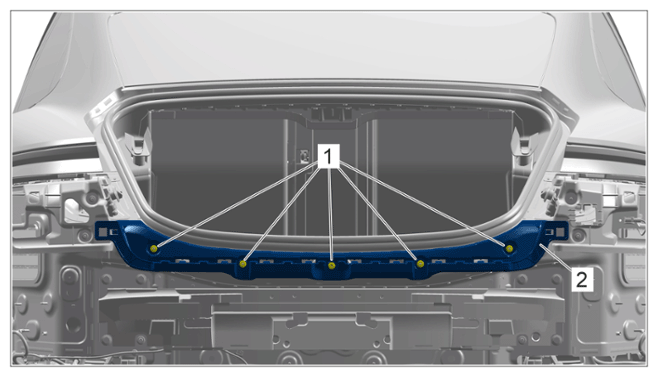

2. Unclip rear retaining strip at the centre -2-  from rear retaining strip for tail light -1-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear retaining strip, centre

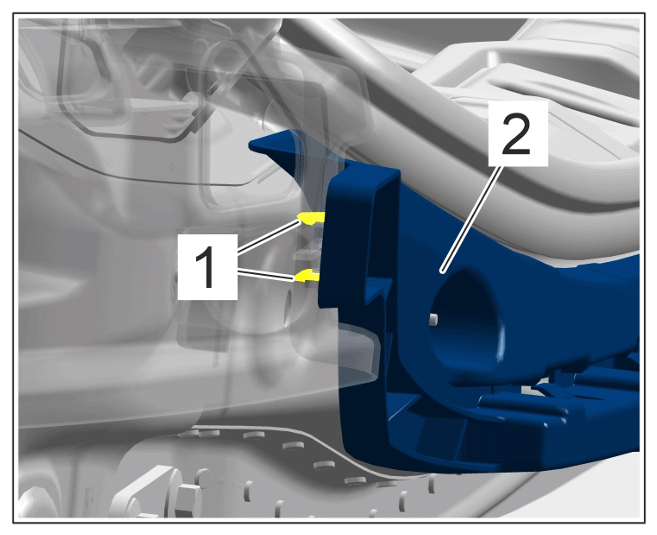

3. Unscrew and remove nuts -1-  from rear retaining strip for tail light -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear retaining strip for tail light
