63 Bumper -- Y1A - TAYCAN (Y1A)
>>
WM, 635719 Removing And Installing Rear Retaining Strip
>>
Removing Rear Retaining Strip
>>
Removing Bottom Rear Retaining Strip At The Sides

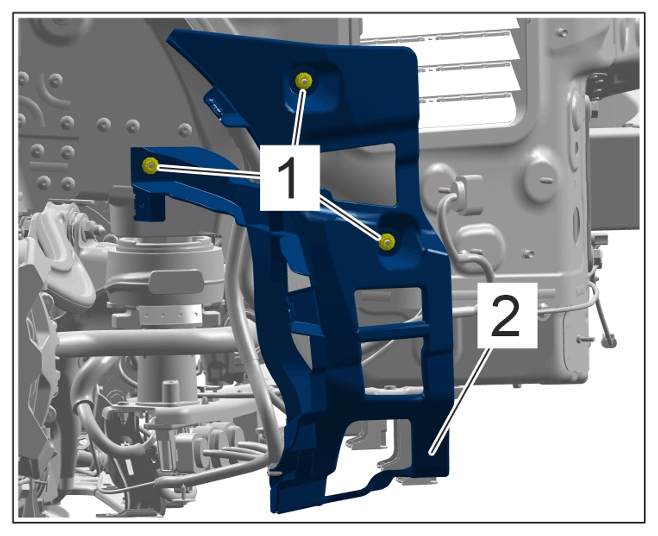

Removing Bottom Rear Retaining Strip At The Sides
Unscrew nuts
-1-
and remove bottom rear retaining strip at the sides
-2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Bottom rear retaining strip at the sides
