Removing Rear Apron

Information

• The number of screws, clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing are shown only on one equipment variant and can differ from the actual equipment variant.
• Some of the repair illustrations show only one side of the vehicle.

  Information

  The help of another person is required.

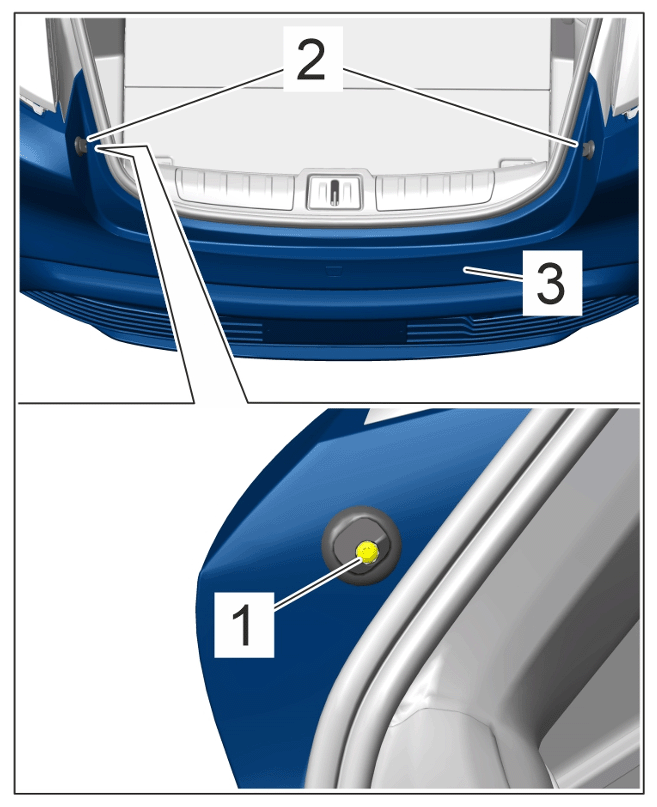

1. Remove guide pin -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Guide pin

   1. 1.1 Unscrew screw -1-  .
   2. 1.2 Pull guide pin -2-  out of the rear apron -3-  .

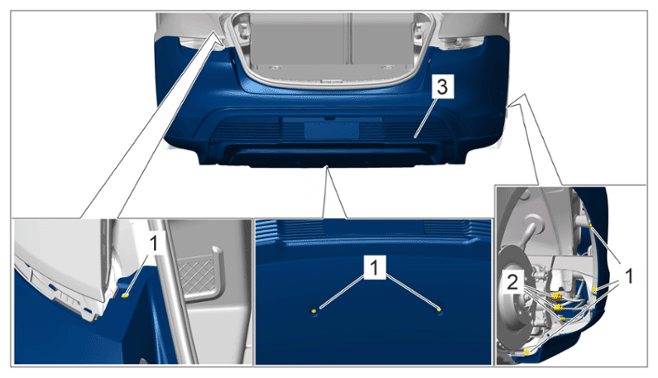

2. Detach rear apron -3-  .
   1. 2.1 Unscrew screws -1-  .
   2. 2.2 Release and disconnect electric plug connections -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear apron

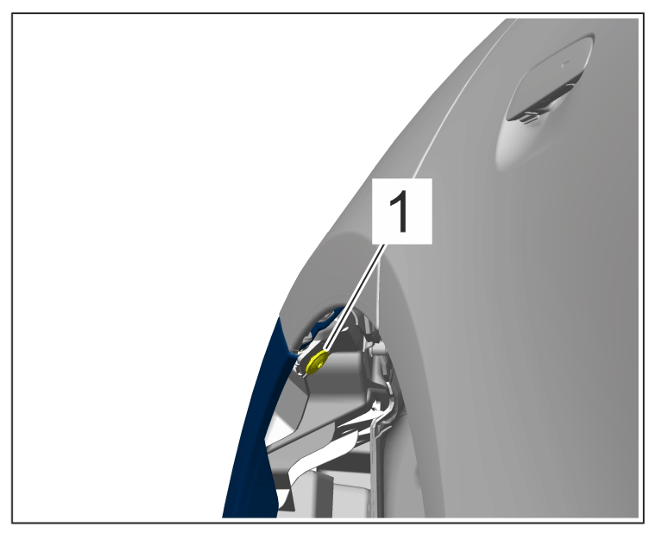

3. Unscrew screw at the top -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw

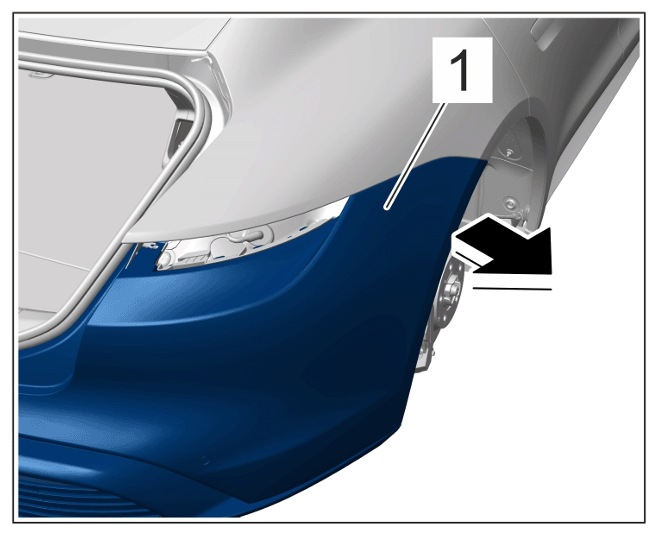

4. Pull out rear apron -1-  (-Arrow-  ) and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear apron
