Removing Rear Bumper

Information

• The number of screws, clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing are shown only on one equipment variant and can differ from the actual equipment variant.

1. Remove rear bumper -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

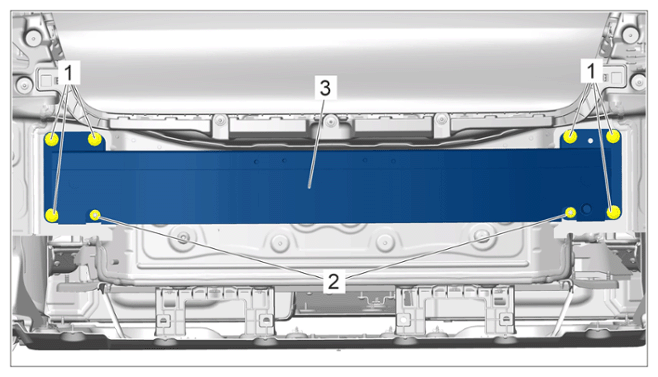

   Rear bumper

   1. 1.1 Unscrew and remove screws -1-  .
   2. 1.2 Unscrew and remove screws -2-  .
   3. 1.3 Remove bumper -3-  .
