Removing Cover Moulding

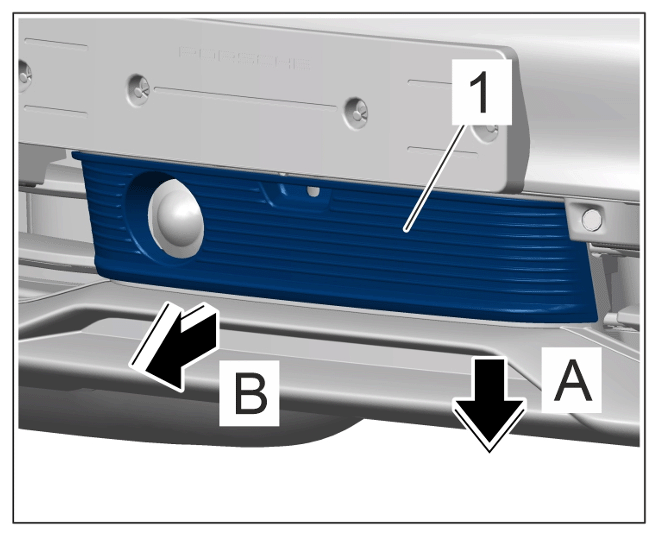

1. Release cover moulding -1-Arrow A-  and remove it -Arrow B-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover moulding

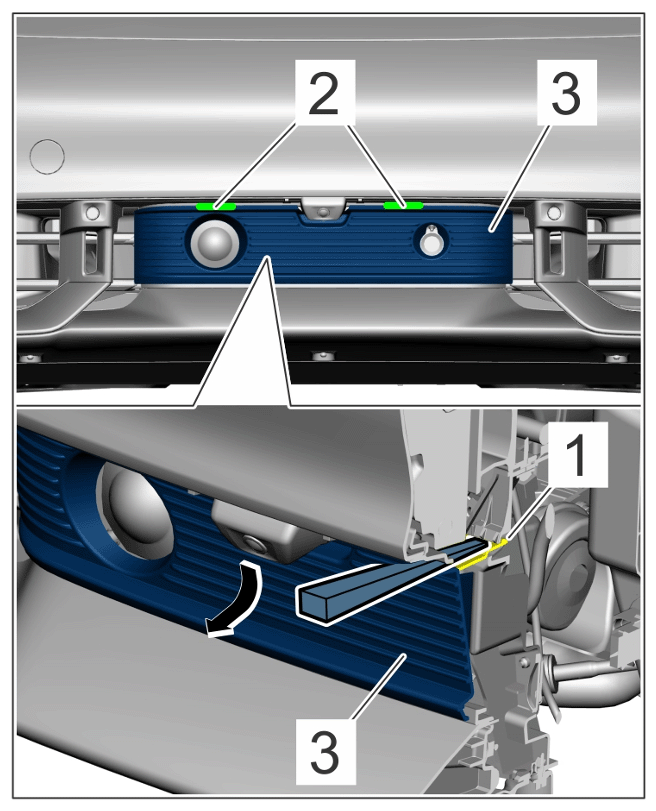

1. 1.1 Release locking lugs -1-  at the positions -2-  using a plastic wedge and loosen cover moulding -3-  in direction of -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover moulding

2. 1.2 Loosen cover moulding -1-  completely -Arrow B-  and remove it.
