Instructions For Painting Front Apron (Vehicles With Intersection Assist)
- Improper painting of the cover in the area of the assistance system.
- Protective film or stickers in the area of the assistance system.
→ To prevent malfunctions in the assistance system, the specified parameters must always be observed when painting covers near the assistance system.
→ Do not affix protective film or stickers in the assistance system area.

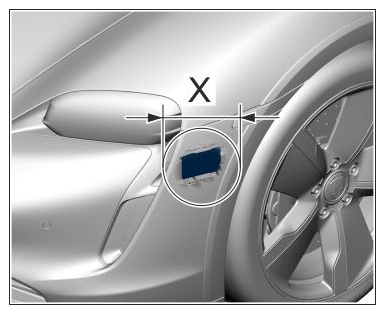

Front apron in Intersection Assist control unit area. Left side shown; right side is a mirror image.
Installation point for Intersection Assist
The maximum paint layer thickness > Layer thickness 150 μm > must not be exceeded on covers in the Intersection Assist control unit area.
Plastic repairs must not be carried out in the area within a radius of at least -X - > Distance 25 cm .
Filler work must not be carried out in the area within a radius of at least -X - > Distance 25 cm .
Spot-painting or spot-repair in the Intersection Assist control unit area is not permitted.
A cover with original paintwork done at the factory may be surface-painted max. once (S2) in the event of repairs.
A spare part may be re-painted (S1) max. once and surface-painted (S2) once.
Before starting to paint, scratch-test the adjacent area to check whether the cover has already been repainted.
If in doubt, always replace the cover.
1) Stage 1: New part painting; for details, see Paint Service Information
2 Stage 2: Surface painting; for details, see Paint Service Information
