Disassembling Front Apron

  1. Unclip cover on towing lug.

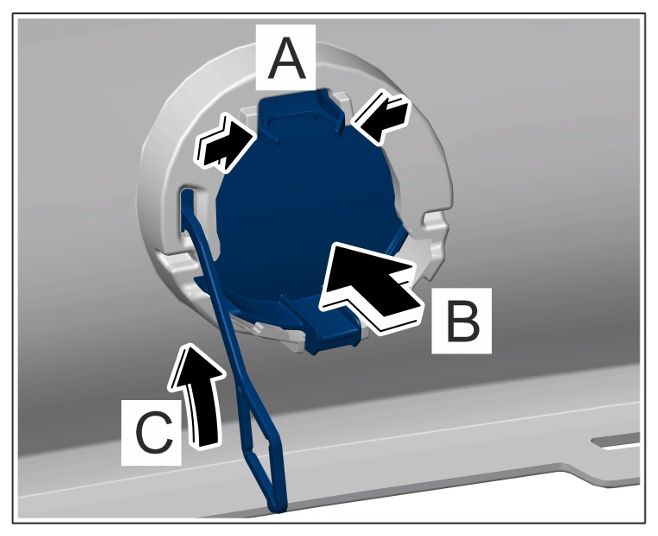

    G15564147Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover for towing lug

    1. 1.1 Release locking lugs -arrows A-  .
    2. 1.2 Press out the cover -arrow B-  .
    3. 1.3 Unhook safety strap -arrow C-  .
  2. Remove cover on towing lug.
