Technical Values

Location	Description	Type	Basic value

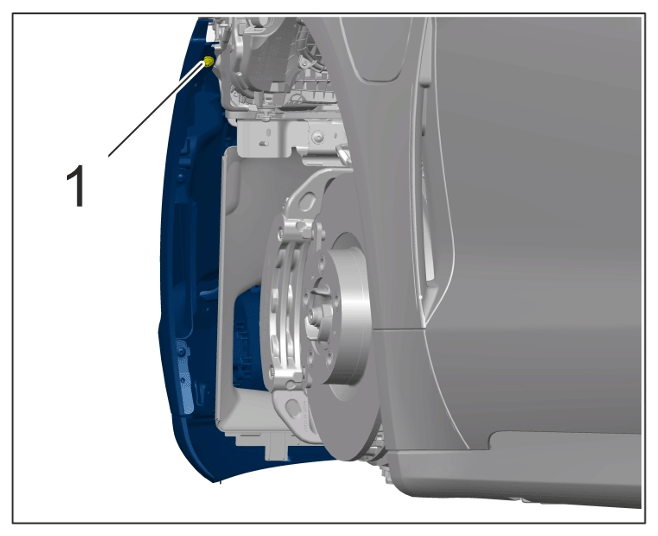

Screw securing front apron to front guide element	Item 1	Tightening torque	2.8 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for wheel housing

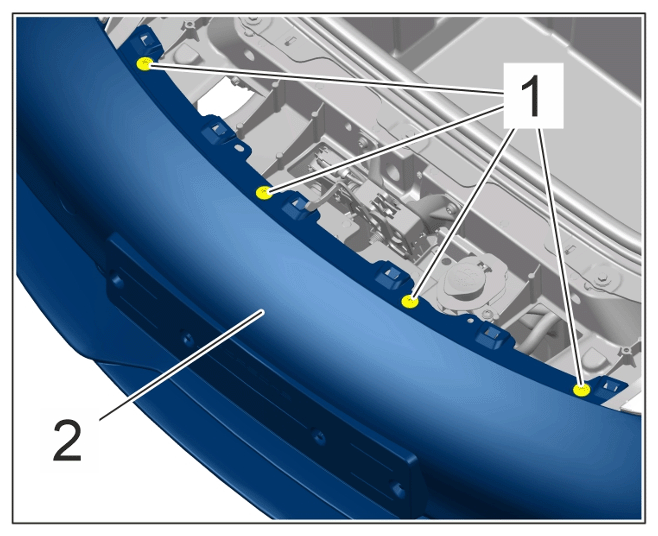

Screws securing front apron to bracket	Item 1	Tightening torque	5.5 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on lock carrier

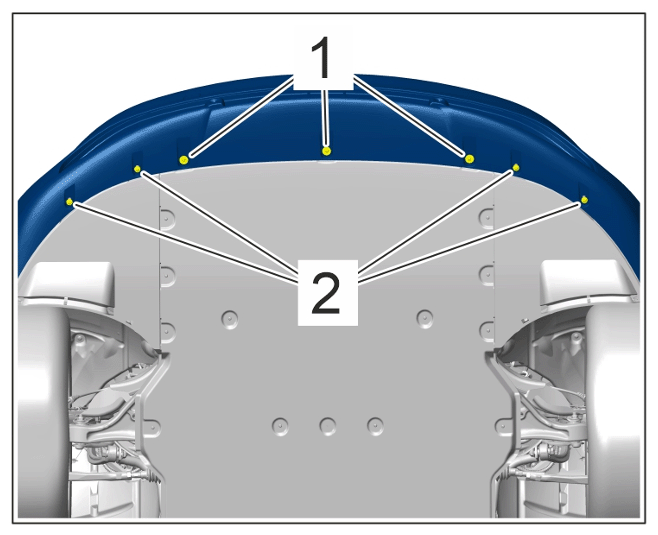

Side screws securing front apron to underbody cover	Item 2	Tightening torque	5.5 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Centre screws securing front apron to underbody cover	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
