Remove The Front Bumper

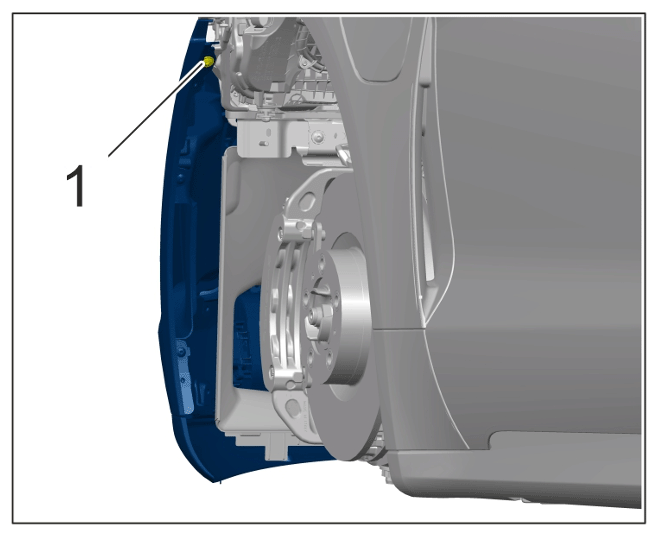

Unscrew screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for wheel housing

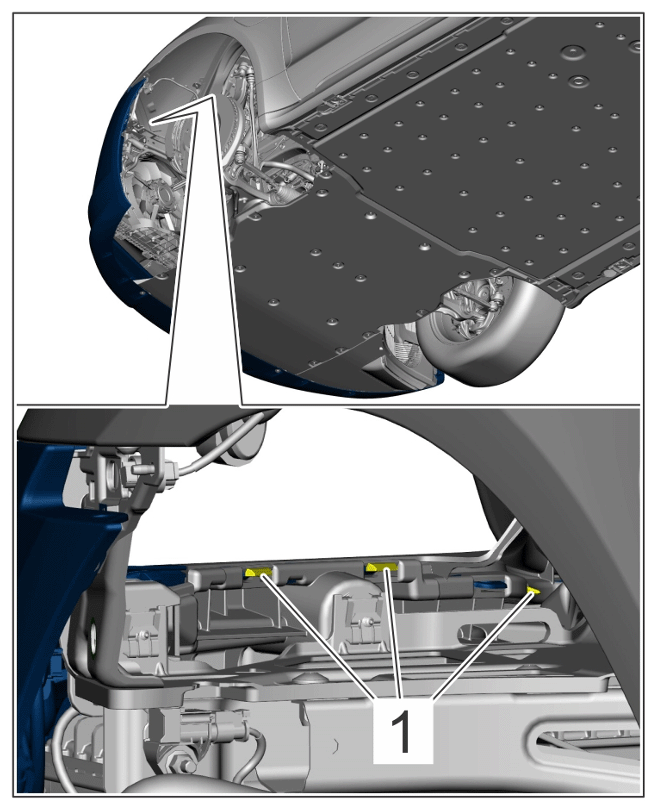

Loosen locking lugs -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking lugs

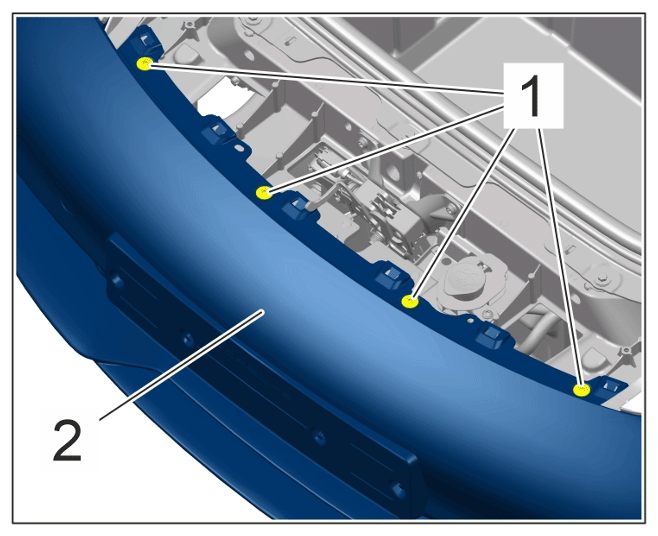

Unscrew screws -1- from front bumper -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on lock carrier

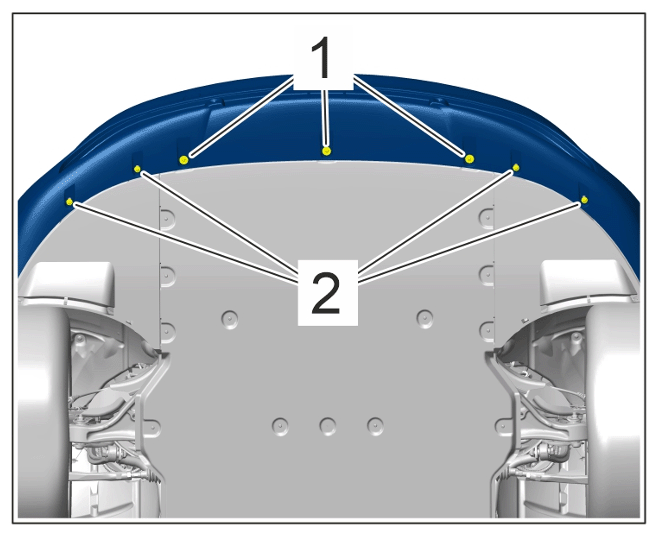

Unscrew screws -1- and -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts

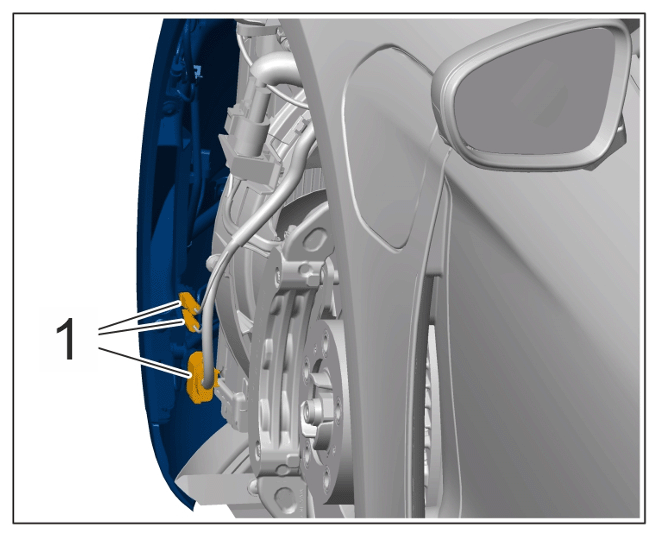

Release electric plug connections -1- disconnect them.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

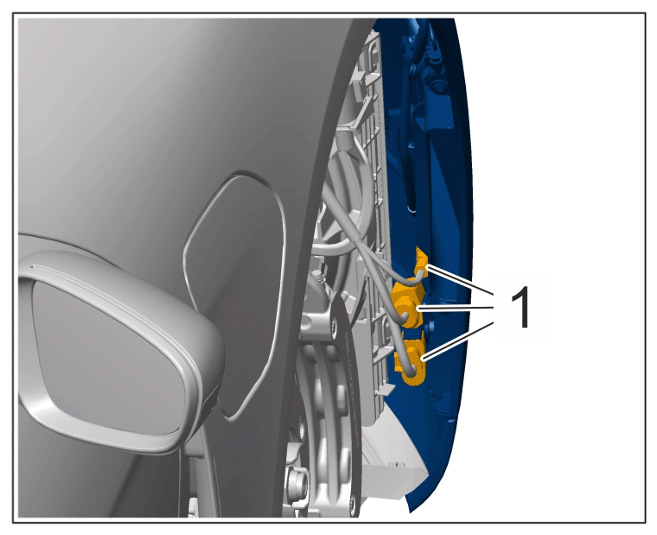

Release electric plug connections -1- disconnect them.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

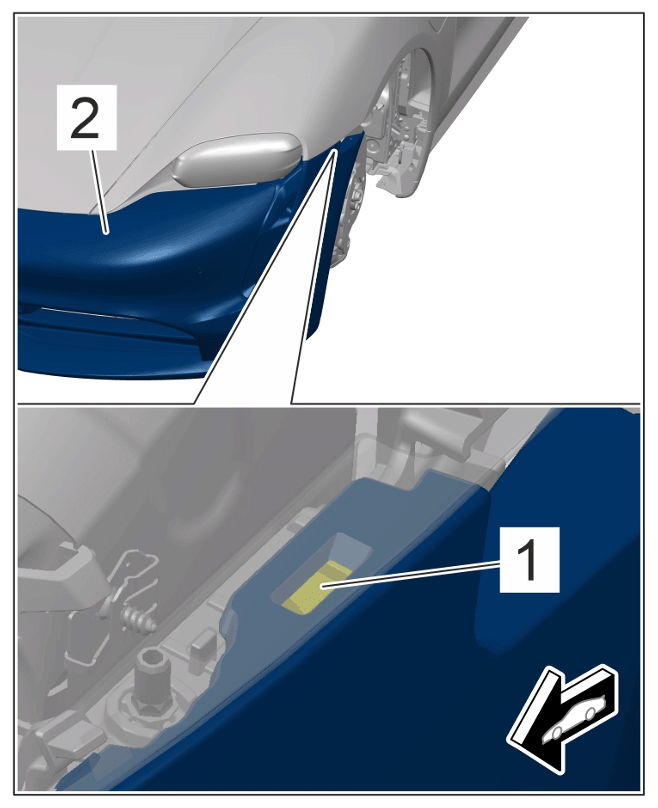

When removing the front bumper -2- , check the side clips -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips

Information

The help of another person is required.
Remove front bumper.
