Installing Front Apron

1. Installation is performed in reverse order. Pay particular attention to the following:

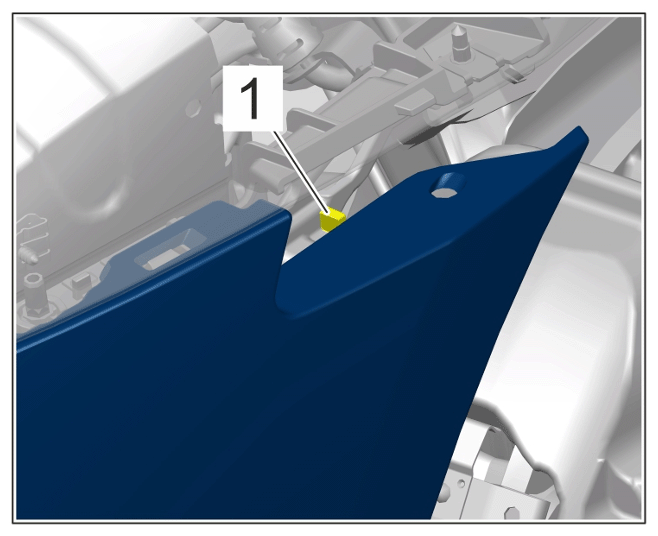

   Slide front apron sideways into the stop -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Y stop

Tighten screw to > Tightening torque 2.8 Nm (2 ftlb.)  .

Tighten screws to > Tightening torque 5.5 Nm (4 ftlb.)  .

Tighten screws to > Tightening torque 2.5 Nm (1.75 ftlb.)  .

Tighten screws to > Tightening torque 5.5 Nm (4 ftlb.)  .

Tighten screws to > Tightening torque 2.5 Nm (1.75 ftlb.)  .
