58 Rear Door, Central Locking -- Y1A - TAYCAN (Y1A)
>>
5826 Latch Striker
>>
WM, 582619 Removing And Installing Striker Pin
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

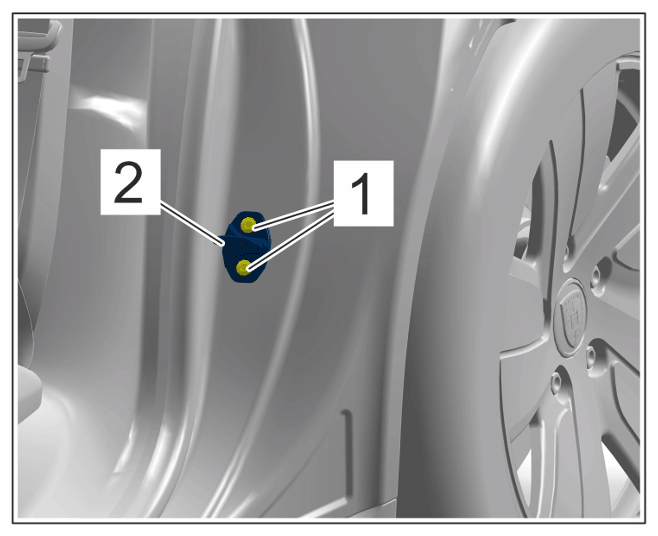

Screws securing lock peg to body
Item 1
Tightening torque
25 Nm (19 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lock peg
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
