Removing Striker Pin

  1. Mark position of lock peg (striker pin).
  2. Unscrew screws -1-  and remove striker pin (lock peg) -2-  .

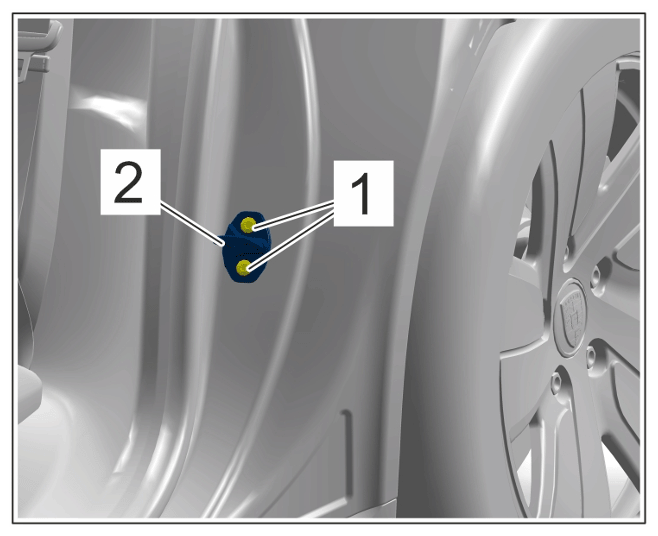

    G15563554Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lock peg
