Installing Striker Pin

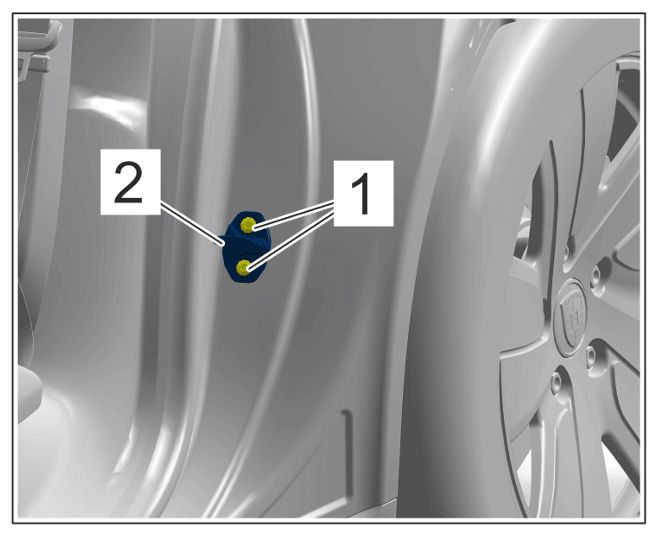

  1. Position striker pin (lock peg) -2-  and tighten screws -1-  hand-tight.
    G15563555Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lock peg

  2. Carefully close the door and check that the lock peg is positioned correctly with respect to the lock.
  3. Adjust the lock peg if necessary.
  4. Tighten screws to > Tightening torque 25 Nm (19 ftlb.)  .
