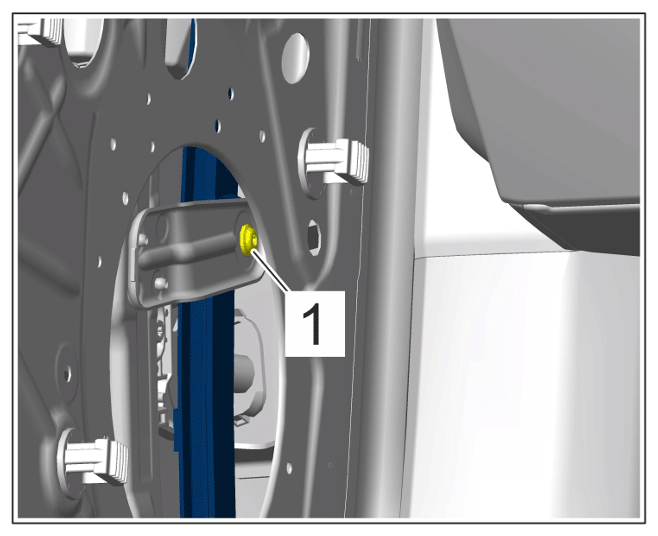

| Bottom screw securing front window guide to door |
Item 1 |
Tightening torque |
8 Nm (5.9 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Bottom screw |

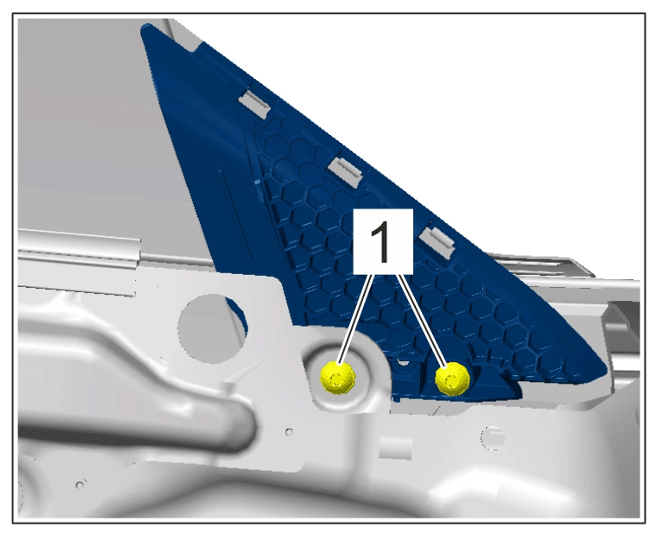

| Screws at top of front window guide on door |
Item 1 |
Tightening torque |
7 Nm (5.2 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Top screws |
