Removing KESSY/Pas Antenna On Front Centre Console

NOTE: NOTIFICATION
Voltage peaks
  • Risk of damage to electrical load or to the control unit

    → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

    → Switch off electrical loads before disconnecting or removing them.

  1. Detach KESSY/PAS antenna on front centre console -2-  .
    1. 1.1  Release locking lug -1-  .
    2. 1.2  Guide KESSY/PAS antenna on front centre console -2-  out of holder -3-  (-arrow-  ).

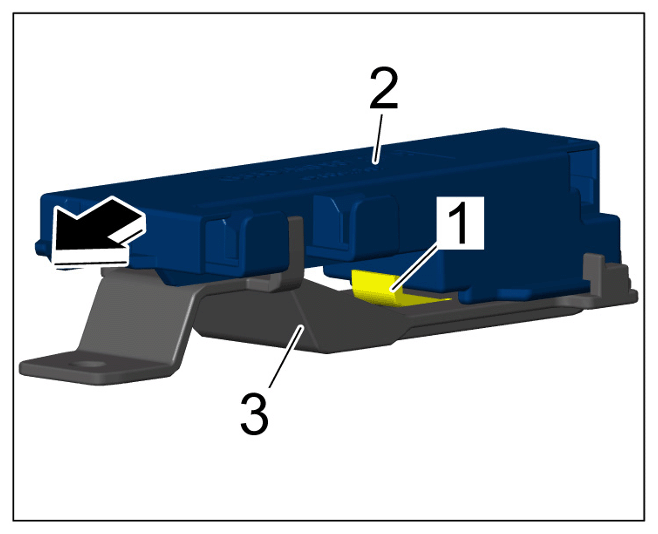

      G15566812Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      KESSY/PAS antenna on front centre console

  2. Release and pull off electric plug connection.
