Removing Front KESSY/Pas Antenna

NOTE: NOTIFICATION
Voltage peaks
  • Risk of damage to electrical load or to the control unit

    → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

    → Switch off electrical loads before disconnecting or removing them.

  1. Release and disconnect electric plug connection for front KESSY/PAS antenna -1-  .

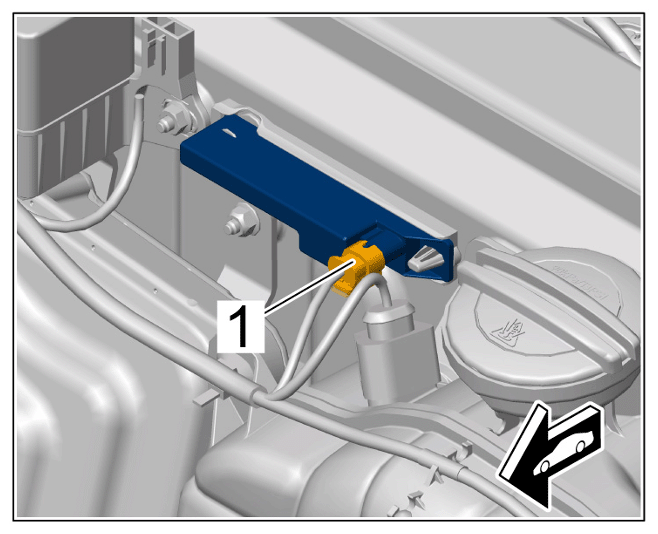

    G15566803Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for front KESSY/PAS antenna

  2. Disconnect front KESSY/PAS antenna -2-  .

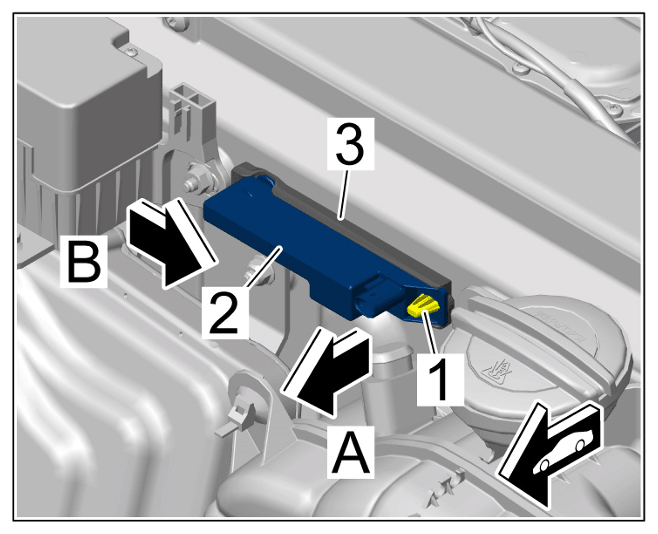

    G15566804Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front KESSY/PAS antenna

    1. 2.1  Release locking lug -1-  .
    2. 2.2  Guide front KESSY/PAS antenna -2-  out of holder -3-  (-arrow A-  and -arrow B-  ).
  3. Remove front KESSY/PAS antenna.
