Removing Alarm Siren

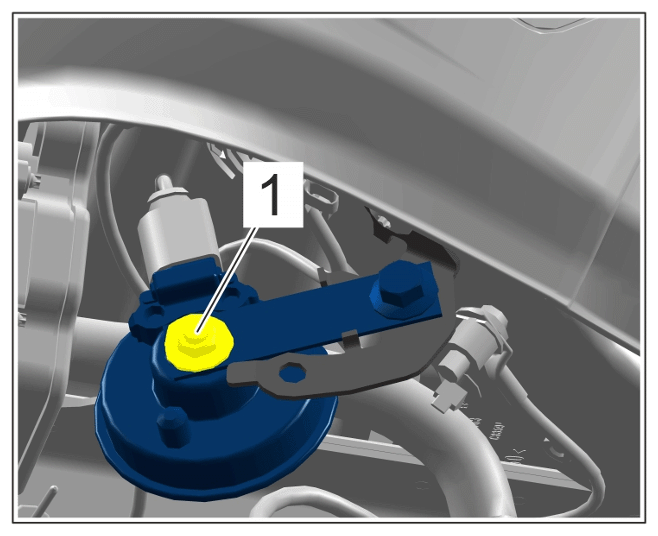

  1. Unscrew nut -1-  on the alarm siren.
    G15566800Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Nut

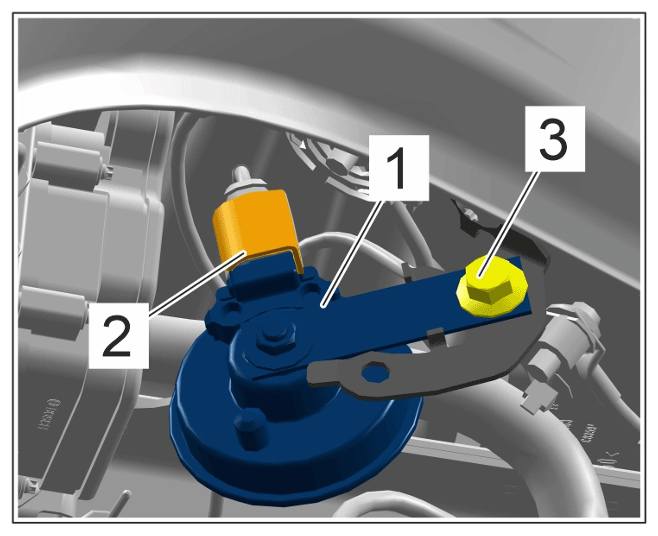

  2. Remove alarm siren -1-  .
    1. 2.1  Release and unplug electric plug connection -2-  .
    2. 2.2  Unscrew screw -3-  .
    3. 2.3  Remove alarm siren -1-  .
      G15566801Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Alarm siren
