Removing Glove Box Light

  1. Open glove compartment lid.
  2. Unclip glove compartment light -1-  using a plastic wedge and pull out glove compartment light -arrow-  until the electric plug connection is accessible.

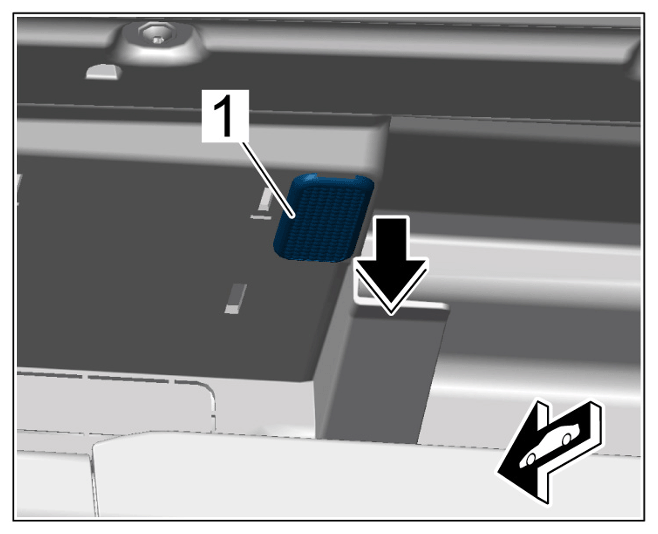

    G15566793Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Glove box light

  3. Release and disconnect electric plug connection -2-  from glove compartment light -1-  .

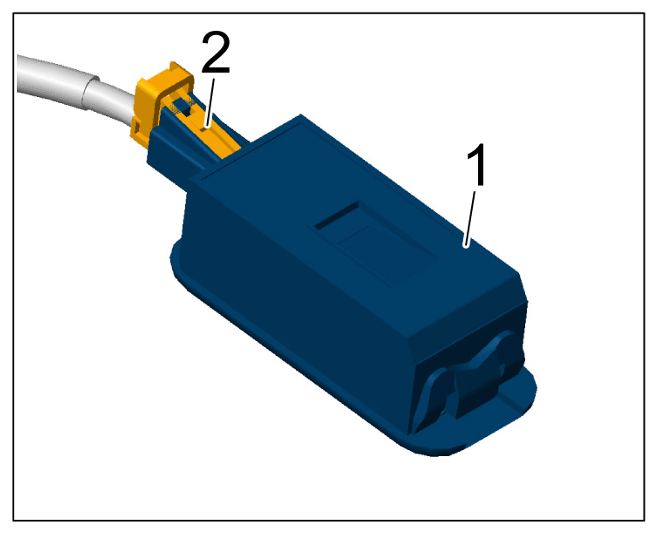

    G15566794Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection
