Removing Luggage Compartment Light

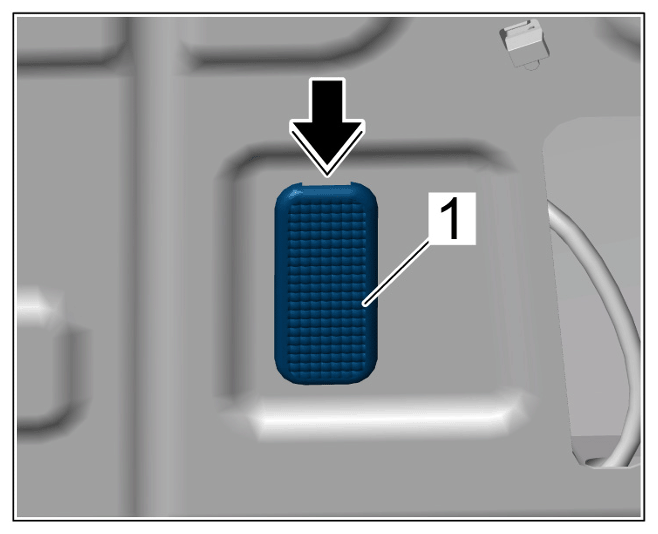

  1. Unclip luggage compartment light -1-arrow-  and pull it out until the electric plug connection is accessible.
    G15566790Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Luggage compartment light

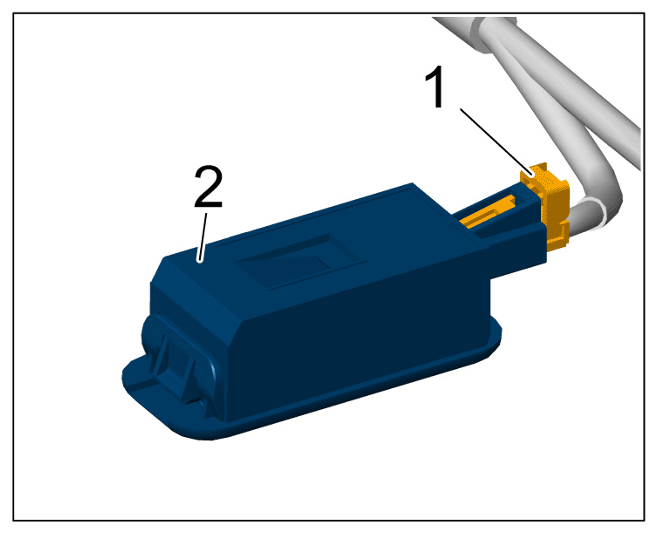

  2. Release and disconnect electric plug connection -1-  (-2-  ) and remove luggage compartment light.
    G15566791Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection
