WM, 963855 Replacing Front Camera: Information

Information

The exact position of the front camera with respect to the geometric driving axis angle is adapted by calibrating the front camera.

• The  > VAS 6430/1A - Setting Device with Reflector  , > VAS 6430/4 - Lane Departure Warning Calibration Plate  , > VAS 6350A - Calibration unit and a wheel alignment computer are required for the calibration process.

Information

• Vehicles with front axle lift system: Set the front axle lift system to "lower".
• Vehicles with adjustable chassis: Set the chassis to "normal" (medium height).
• The vehicle must be on a level surface.

The front camera must be re-calibrated in the following situations:

• When replacing the front camera
• When removing and installing or replacing the windscreen
• When chassis settings are adjusted

1. Before calibrating the front camera, a basic initial measurement must be performed.

   > 449503 PERFORMING FRONT + REAR SUSPENSION ALIGNMENT

2. Set up adjustment device > VAS 6430/1A - Setting Device with Reflector  with > VAS 6430/3 - ACC reflector mirror  and align it parallel to the vehicle transverse axis.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

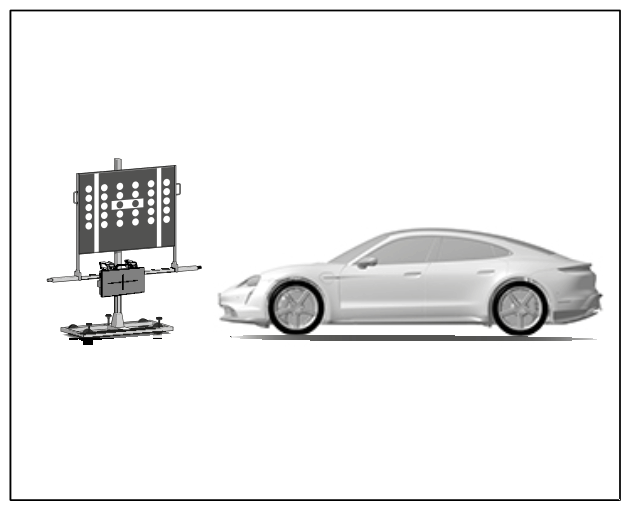

   Setting up calibration unit

   For gap dimensions and instructions for aligning the calibration unit, see PIWIS Tester.
