Removing Front Camera
NOTE:
NOTIFICATION
Voltage peaks
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
→ Switch off electrical loads before disconnecting or removing them.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
- The electrical pins or plug contacts must not be touched.
Information
Do not touch the front camera lens!

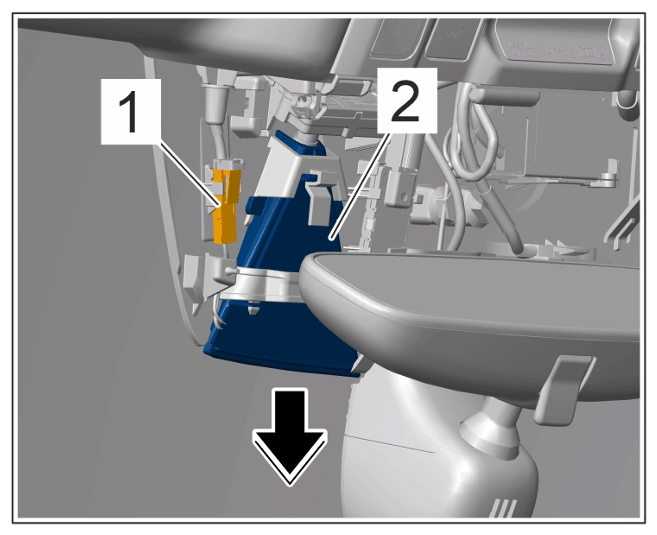

- Remove antenna holder -2-
.
Antenna holder
- 1.1 Release and unplug electric plug connection -1- .
- 1.2 Unclip holder for front camera -2- and pull it out -Arrow- .

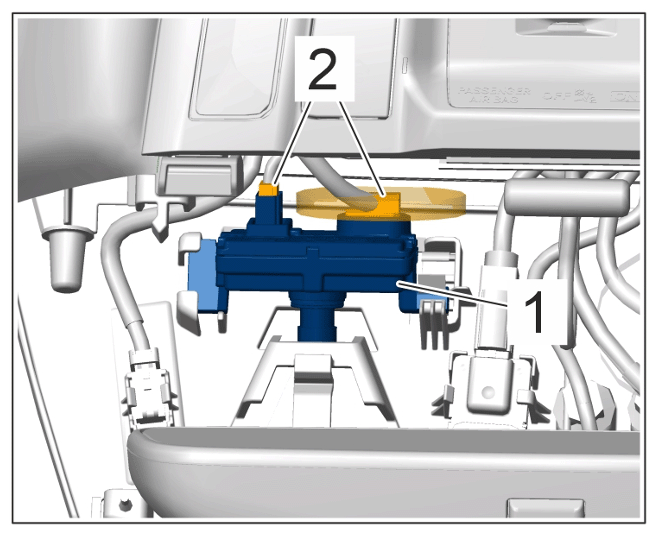

- Remove front camera -1-
.
Front camera
- 2.1
Unclip front camera -1-
and pull it out until the electric plug connections -2-
are accessible.
Information
The fuse for the electric plug connection must not be removed completely.
- 2.2 Release and disconnect electric plug connections -2- .
- 2.1
Unclip front camera -1-
and pull it out until the electric plug connections -2-
are accessible.
