Removing Glove Compartment Light Contact Switch

  1. Remove contact switch for glove compartment light -2-  .
    1. 1.1  Remove bolts -1-  .
    2. 1.2  Turn contact switch for glove compartment light -2-  (-arrow-  ) and remove it.

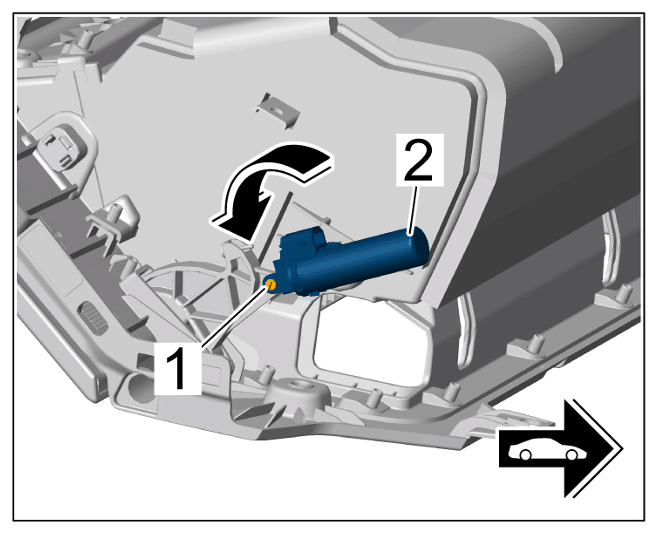

      G15566768Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Glove compartment light contact switch
