Removing Tailgate Trim Panel

Information

To prevent damage, use a suitable tool as a support during removal at accessible connection points.

1. Remove tailgate trim panel at the left -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

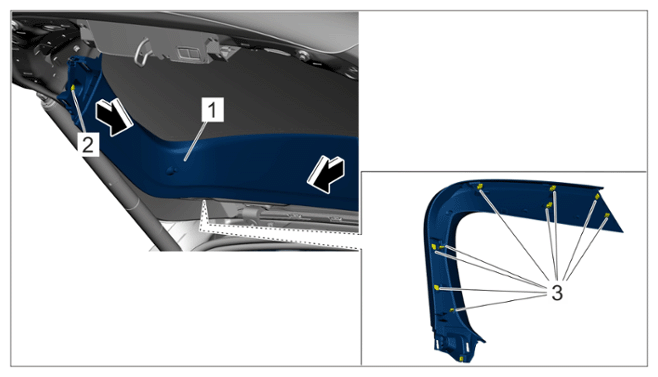

   Tailgate trim panel at the left

   1. 1.1 Unscrew screw -2-  .
   2. 1.2 Unclip clips -3-  .
   3. 1.3 Guide out trim panel. -Arrow-
2. Remove tailgate trim panel at the right -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

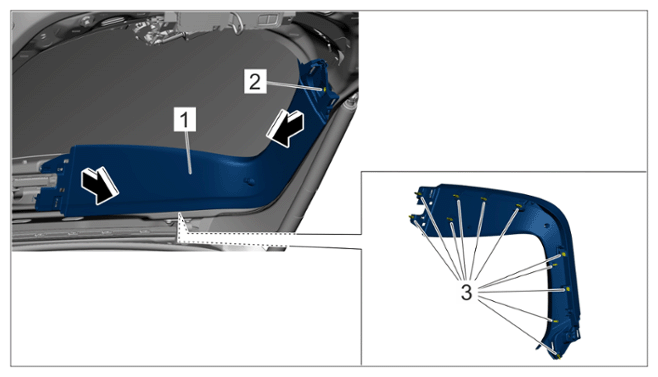

   Tailgate trim panel at the right

   1. 2.1 Unscrew screw -2-  .
   2. 2.2 Unclip clips -3-  .
   3. 2.3 Guide out trim panel. -Arrow-
