Removing Front Loudspeaker Trim Panel (Dashboard) At The Centre

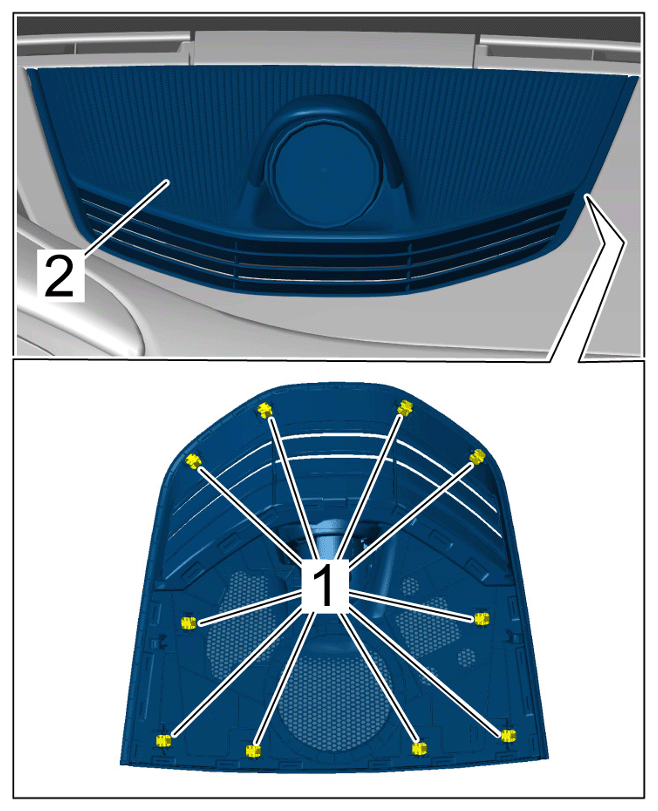

  1. Loosen clips -1-  and lift up front loudspeaker trim panel (dashboard) at the centre -2-  .
    G15565049Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clips

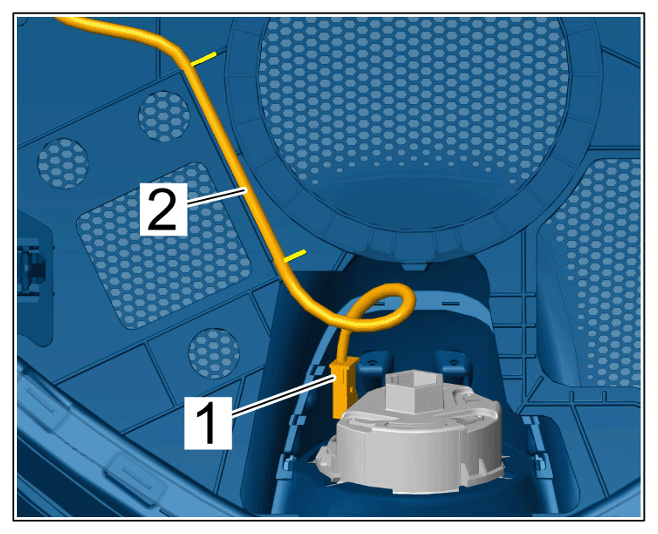

  2. Disconnect wiring harness -2-  .
    1. 2.1 Release and unplug electric plug connection -1-  .
    2. 2.2 Unclip wiring harness -2-  and guide it out.
    G15565050Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection
