Removing Roof Trim Panel

Information

Make sure not to kink the roof trim panel when fitting it.

Information

The help of another person is required.

1. Fold rear backrests forward.
2. Move front seats all the way forward and tilt front backrests to the rear.

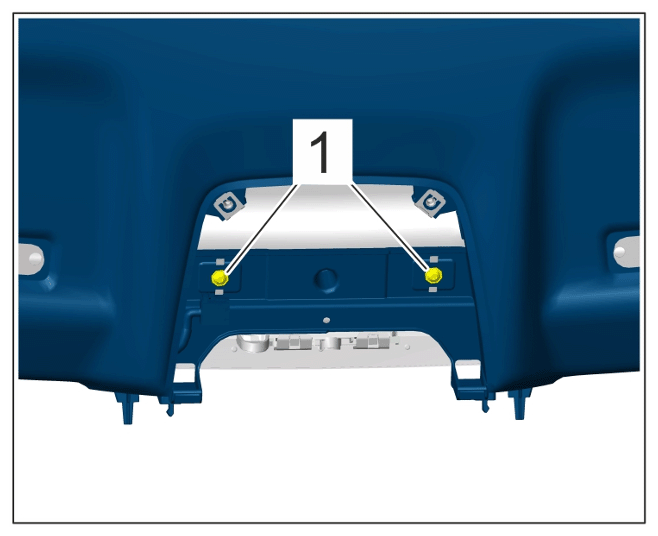

3. Unscrew and remove screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws

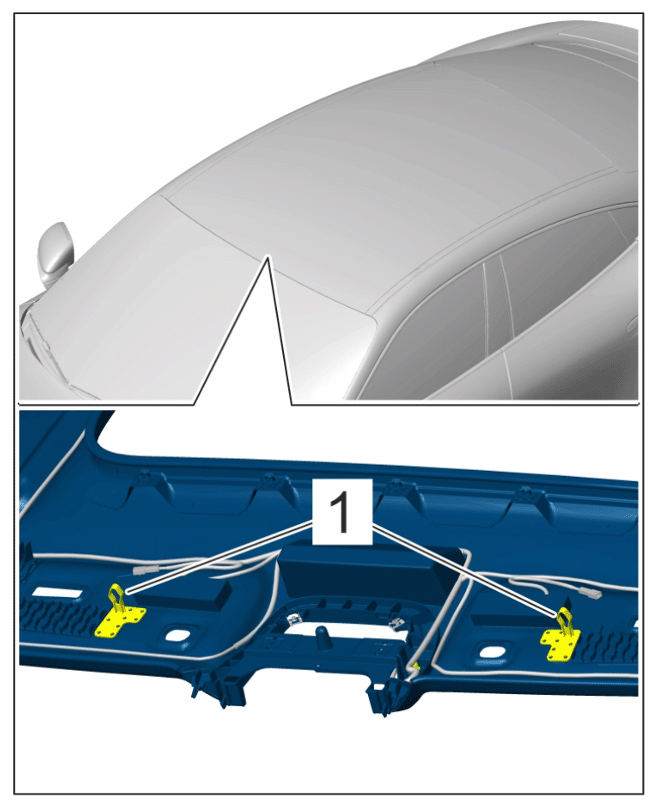

4. Unclip clips -1-  using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clips

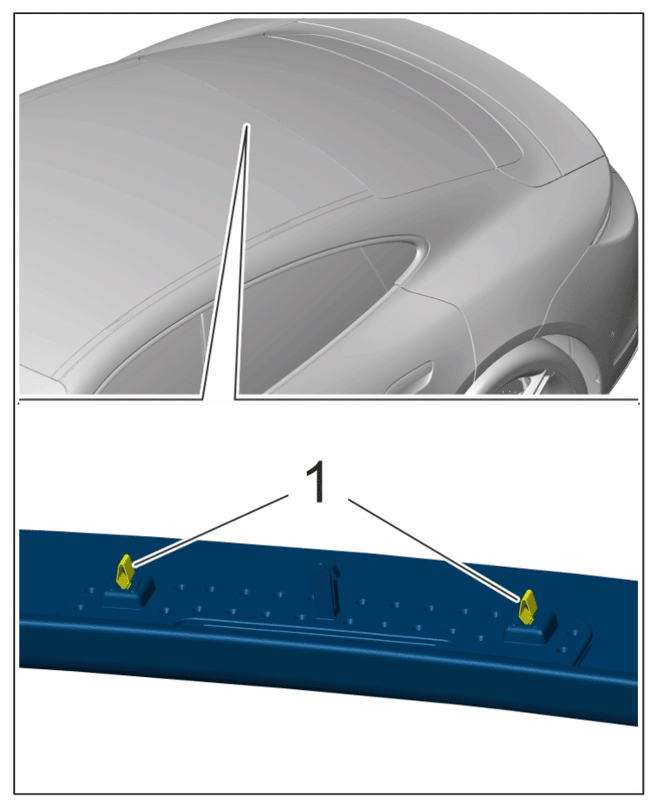

5. Unclip clips -1-  using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clips

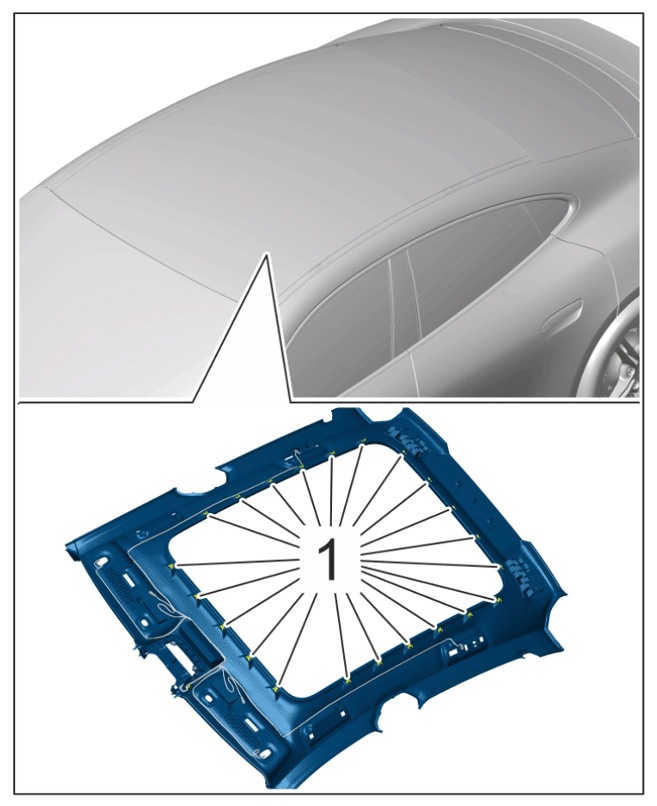

6. Unclip clips -1-  using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clips

7. Remove roof trim panel by pulling it forward.
