Removing C-Pillar Trim Panel (Upper Part)

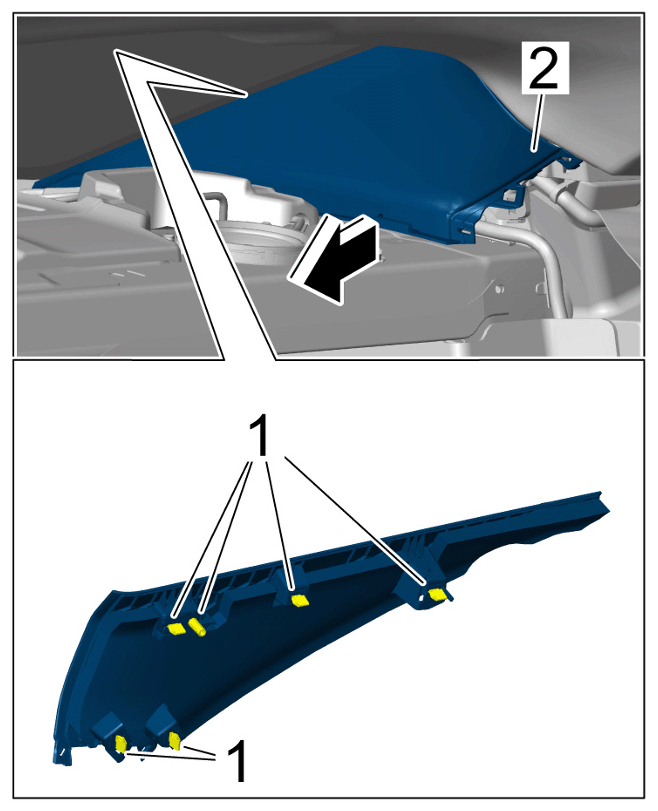

  1. Release clips -1-  and remove C-pillar trim panel (upper part) -2-  (-arrow-  ).
    G15565024Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    C-pillar trim panel (upper part)
