Removing (Lower Part Of) C-Pillar Trim Panel

  1. Unscrew screw -1-  .

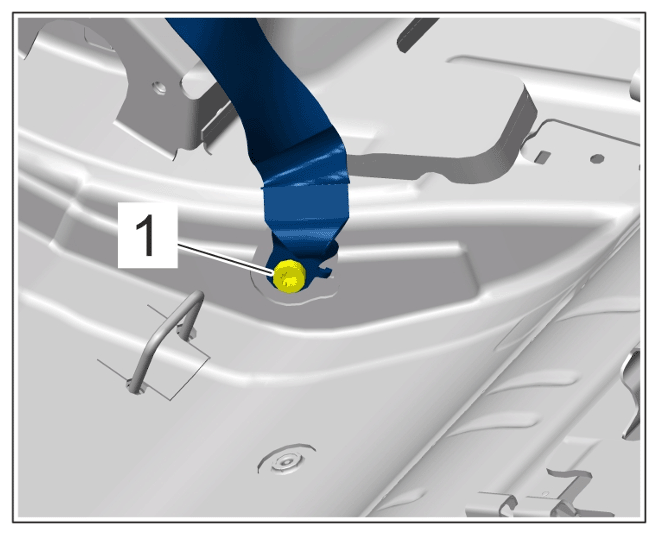

    G15565019Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw

  2. Fold rear backrest over.
  3. Remove rear shelf -2-  .

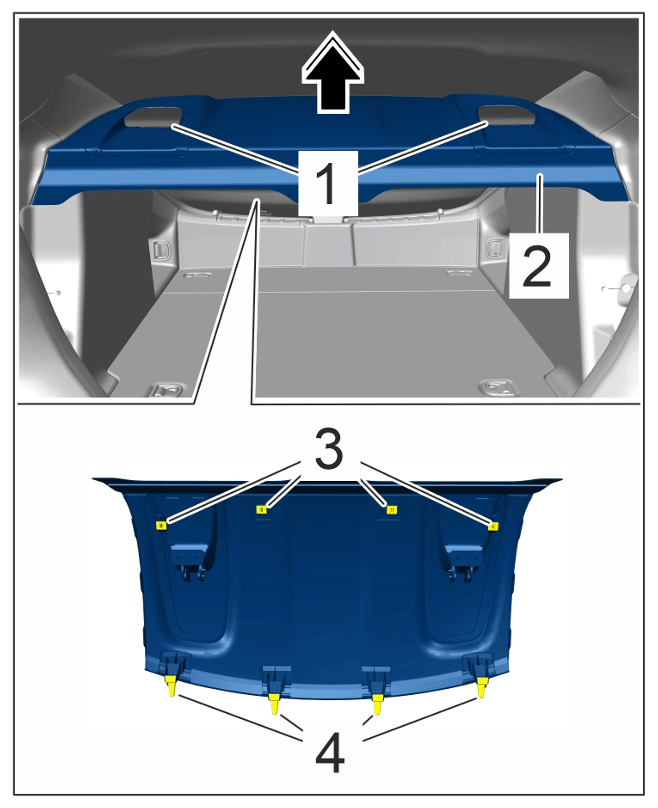

    G15565020Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear shelf

    1. 3.1 Release clips -2-  .
    2. 3.2 Guide rear shelf -1-  out of the locking pins -3-  .
    3. 3.3 Remove rear shelf -1-  (-arrow-  ).
  4. Loosen C-pillar trim panel (lower part) -2-  .

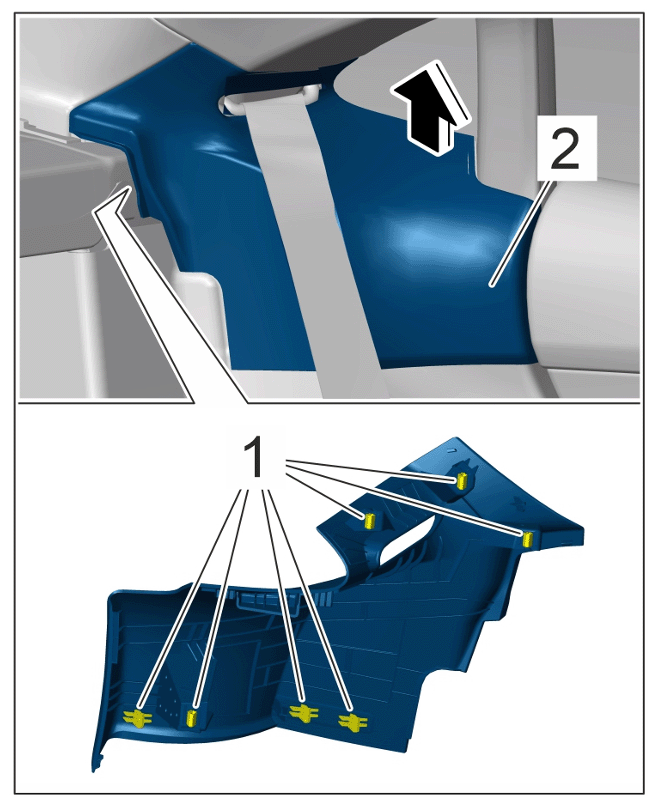

    G15565021Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clips

    1. 4.1 Loosen clips -1-  .
    2. 4.2 Lift C-pillar trim panel (lower part) -2-  (-arrow-  ).
    3. 4.3 Pull out C-pillar trim panel (lower part) -2-  .
  5. Remove C-pillar trim panel (lower part).
