Installing C-Pillar Trim Panel (Lower Part)

Information

Do not twist the three-point seat belt during installation.

Information

• Check fixing clips, retaining clips and expanding clips for damage and replace them if necessary.
• Check that all fixing clips, retaining clips and expanding clips are fitted at the correct position.

Information

Self-locking screws must always be replaced.

1. Installation is performed in reverse order. Pay particular attention to the following:

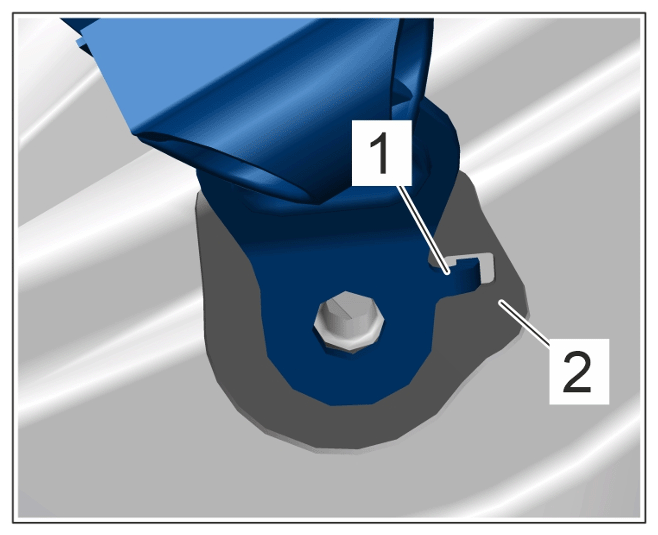

   1. 1.1 Guide seat belt mount -1-  into the body -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Seat belt mount

   2. 1.2 Tighten new screw to > Tightening torque 50 Nm (37 ftlb.)
