Removing B-Pillar Trim Panel (Upper Part)

Information

To reduce the forces during removal and thereby the risk of damage, a suitable tool must be used as a support during removal at accessible connection points.

Information

• Move belt adjustment cover panel to its upper end position.
• Set belt adjustment to upper end position.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B-pillar trim panel (upper part)

• When swivelling out the B-pillar trim panel (upper part) -1-  , make sure not to damage the guide lugs -2-  and -3-  .

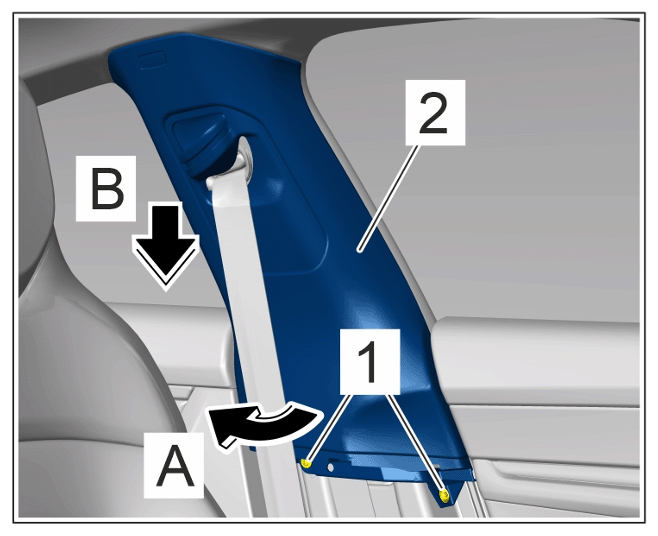

1. Unscrew screws -1-  and swivel out B-pillar trim panel (upper part) -2-  (-arrow A-  ) and remove it -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws

2. Guide belt with belt tongue and seat belt mount through the slide opening.
