Installing B-Pillar Trim Panel (Upper Part)

Information

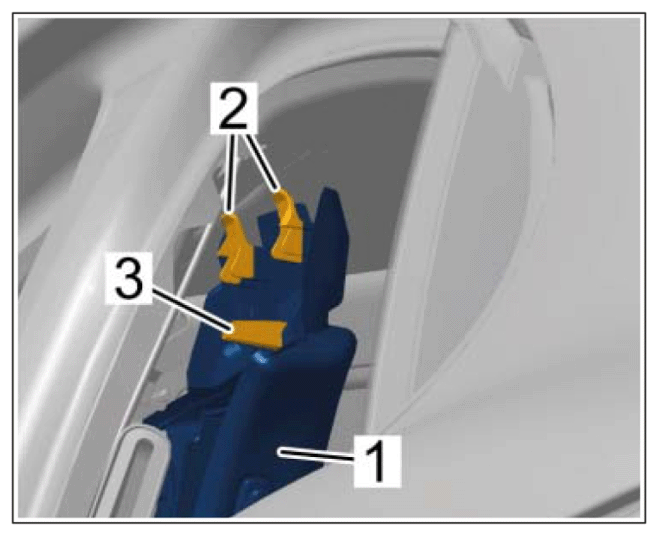

Swivel in B-pillar trim panel (upper part) -1-  and make sure that the guide lugs -2-  and -3-  are positioned correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B-pillar trim panel (upper part)

1. Installation is performed in reverse order. Pay particular attention to the following:

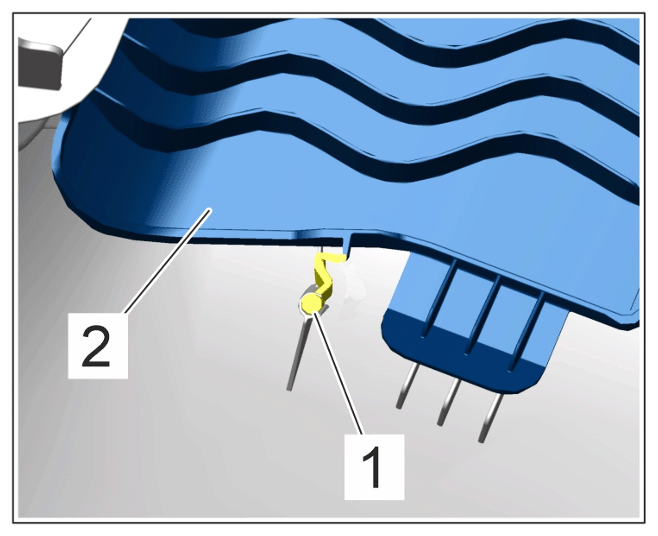

   Assembly aid -1-  for seat-belt height adjustment -2-  must be hooked into the B-pillar trim panel (upper part).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Assembly aid

   Tighten screws securing B-pillar trim panel (upper part) to the B-pillar to > Tightening torque 6 Nm (4.5 ftlb.)  . Guide door seal on both sides over the B-pillar trim panel (upper part).
