Removing B-Pillar Trim Panel (Lower Part)

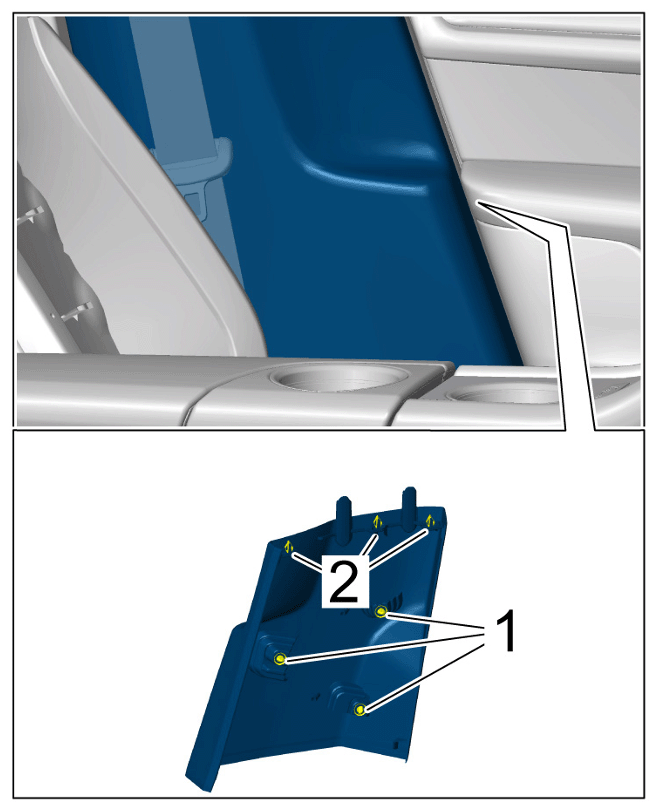

1. Loosen clips -1-  and clamps -2-  using a plastic wedge.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clips

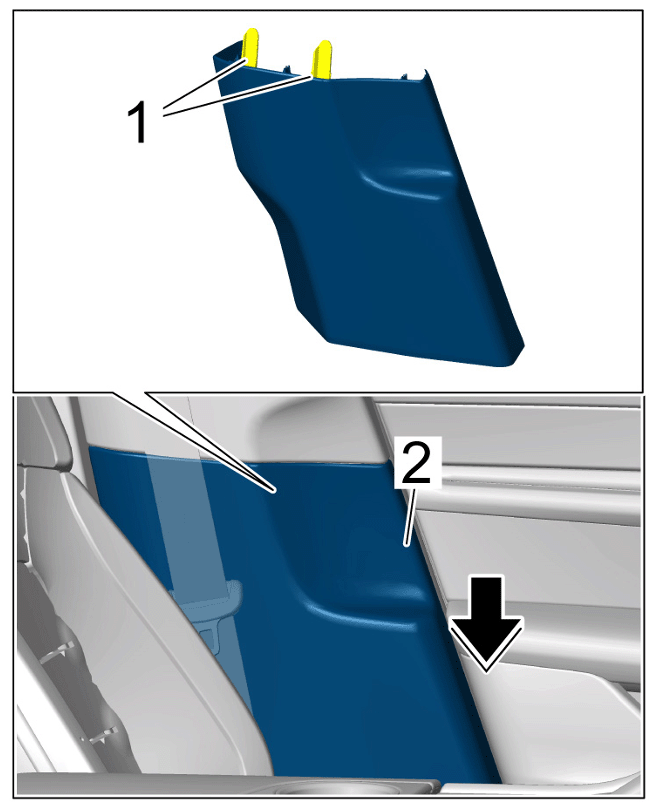

2. Remove B-pillar trim panel (lower part) -2-  by pulling it downwards -arrow-  in order to pull out the guide lugs -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B-pillar trim panel (lower part)
