Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing door panel to door bodyshell Item 1 Tightening torque 4 Nm (3 ftlb.)

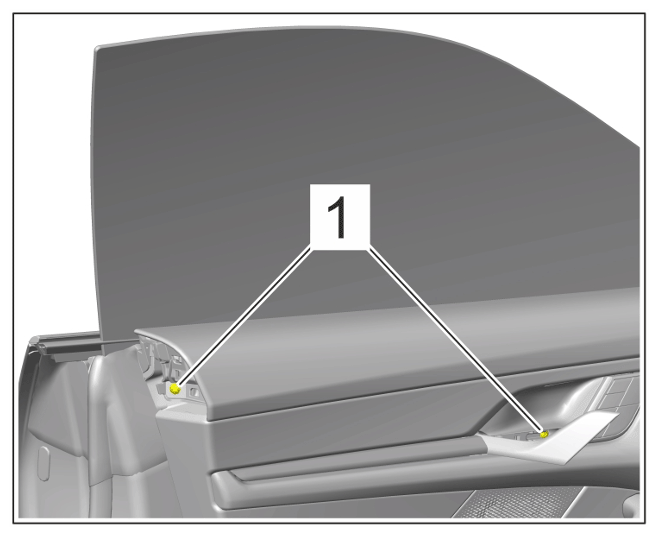

G15565000Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
