Removing Dashboard Moulding (Passenger's Side) With Front Passenger Display (I No.: JH1)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

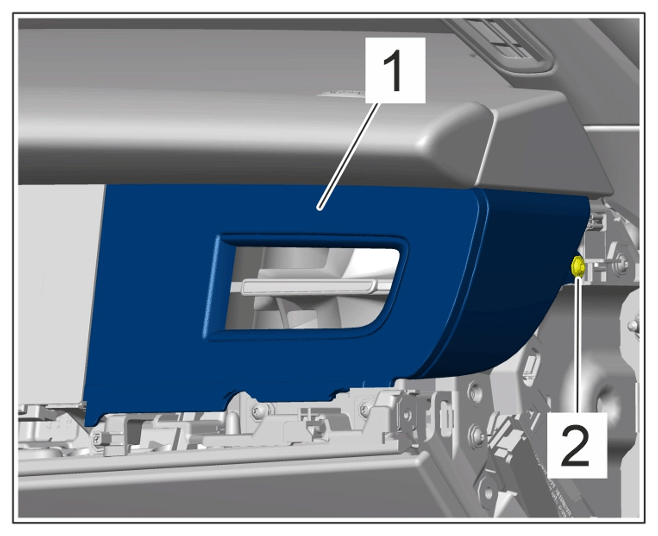

Dashboard moulding (on passenger's side)

Information

The risk of damage is very high due to high removal forces.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Dashboard moulding (on passenger's side)

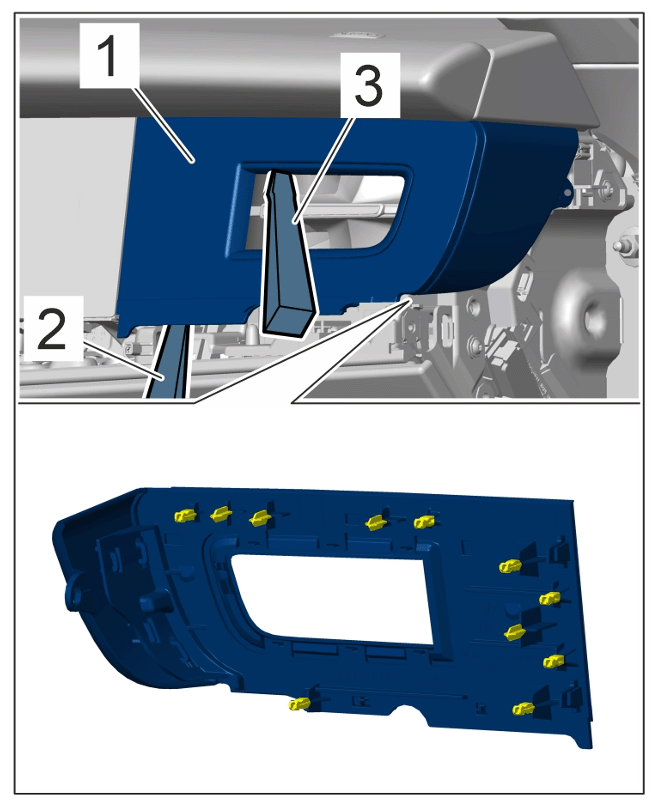

1. 1.2.1 Loosen lower clips using a plastic wedge -2-  .
2. 1.2.2 Guide plastic wedge -3-  No. 5 from > VAS 6845 - scraper set  between the dashboard moulding (on passenger's side) -1-  and air vent for door window and loosen upper clips from dashboard moulding (on passenger's side) -1-  .
