Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

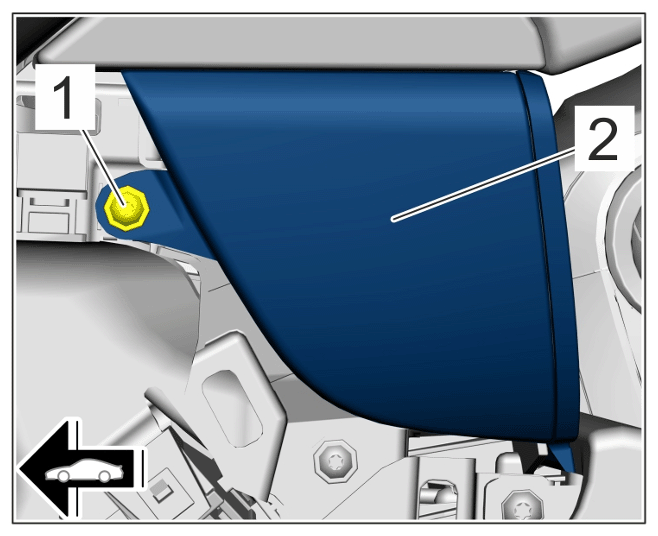

Screw securing dashboard moulding (driver's side) to dashboard Item 1 Tightening torque 1.5 Nm (1.1 ftlb.)
G15564994Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
