Removing Dashboard Moulding (On Driver's Side)

Information

The risk of damage is very high due to high removal forces.

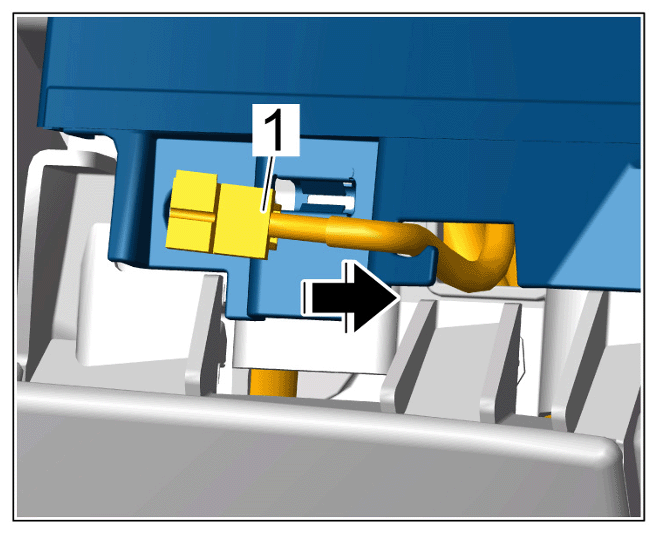

1. Disengage electric line -1-  (-Arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric line

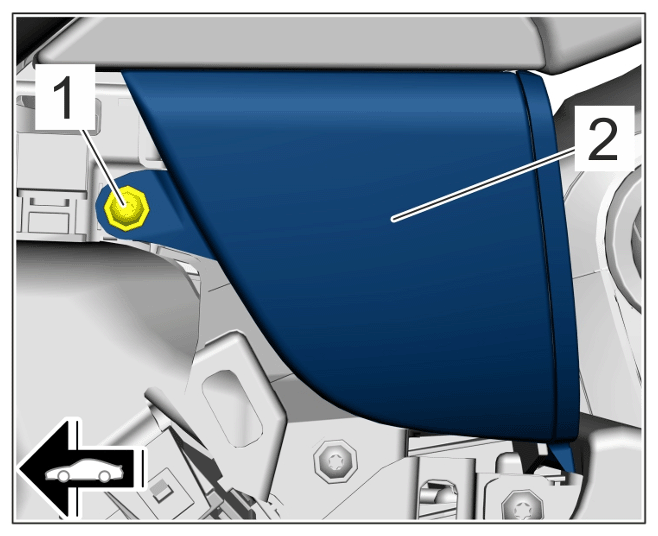

2. Unscrew screw -1-  and unclip dashboard moulding (on driver's side) -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw

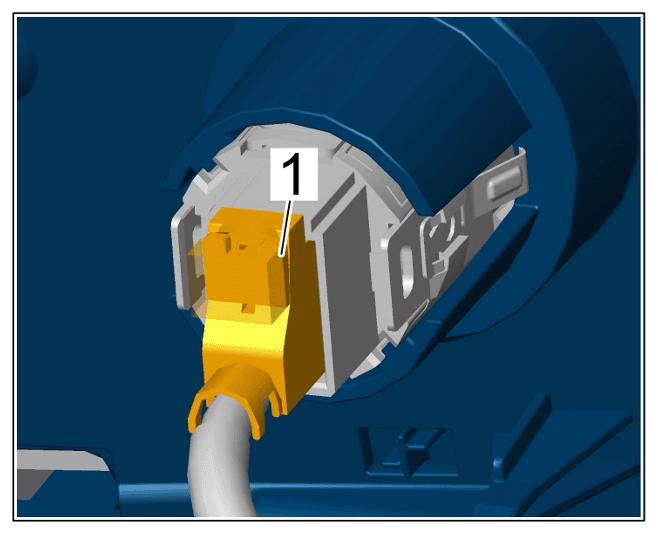

3. Release and disconnect electric plug connection for ignition starter switch -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for ignition starter switch

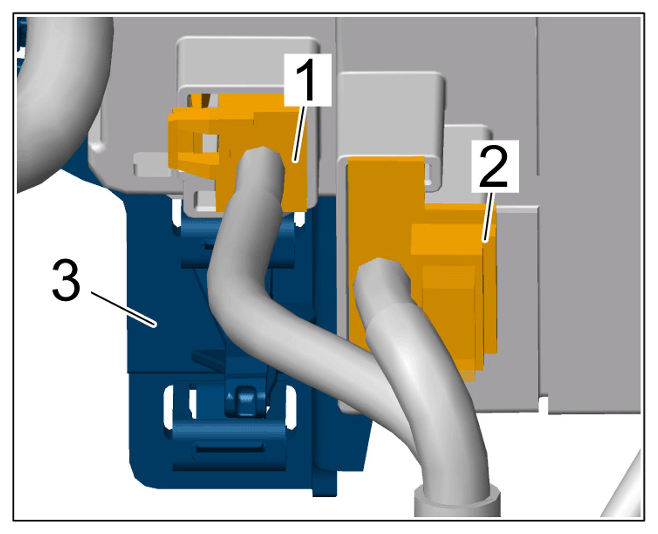

4. Remove dashboard moulding (on driver's side) -3-  .
   1. 4.1 Release and disconnect electric plug connection for parking brake actuator -1-  .
   2. 4.2 Release and disconnect electric plug connection for shift mechanism -2-  .
   3. 4.3 Remove dashboard moulding (on driver's side) -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

5. Remove dashboard moulding (on driver's side).
