Removing A-Pillar Trim Panel

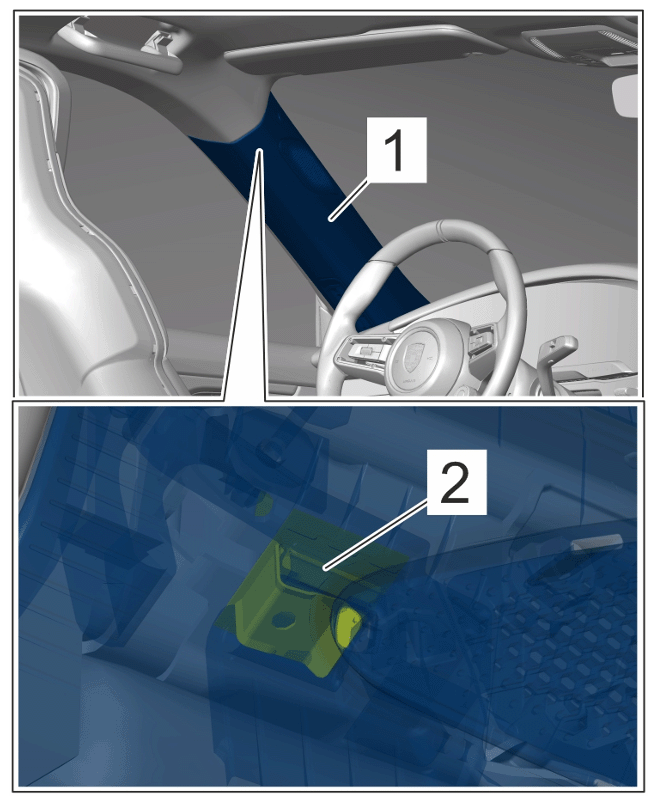

  1. Loosen A-pillar trim panel -1-  in the upper area until the retaining clip -2-  is accessible.
    G15564980Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    A-pillar trim panel

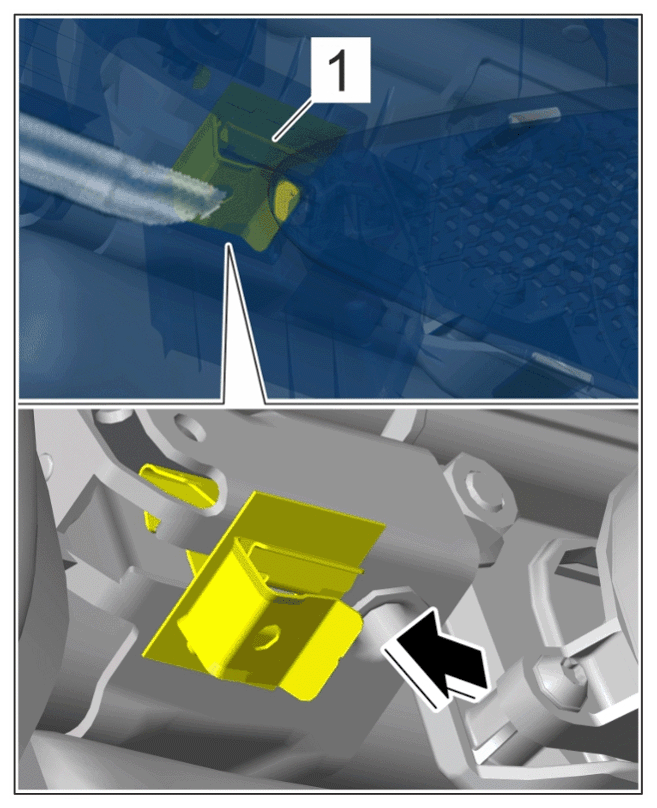

  2. Move retaining clip -1-  using > 3438 - a hook  and -arrow-  pull it out of the A-pillar trim panel holder.
    G15564981Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Retaining clip

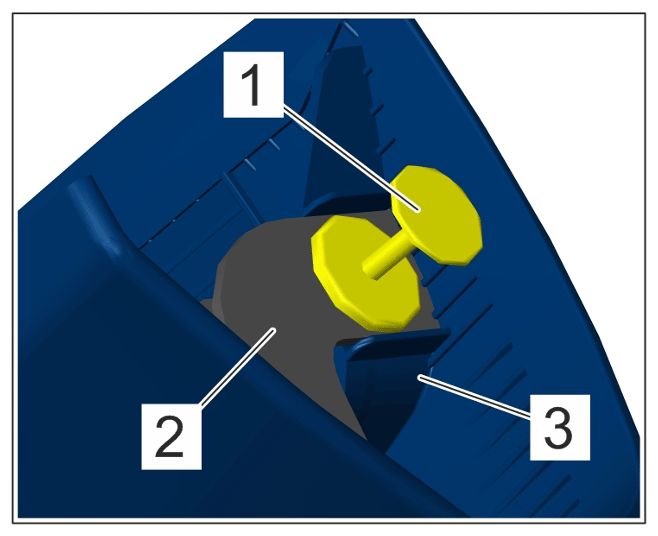

  3. Unclip clip -1-  and loosen rebound strap -2-  from A-pillar trim panel -3-  .
    G15564982Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rebound strap

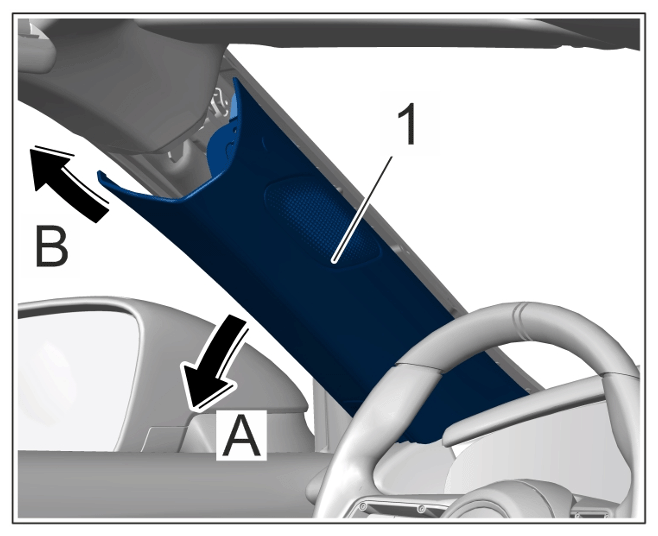

  4. Unclip A-pillar trim panel -1-  (-arrow A-  ) and remove it -arrow B-  .
    G15564983Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    A-pillar trim panel
