Installing A-Pillar Trim Panel

Information

Check fixing clips, retaining clips and expanding clips for damage and replace them if necessary.

Check that all fixing clips, retaining clips and expanding clips are fitted at the correct position.

Installation is performed in reverse order. Pay particular attention to the following:

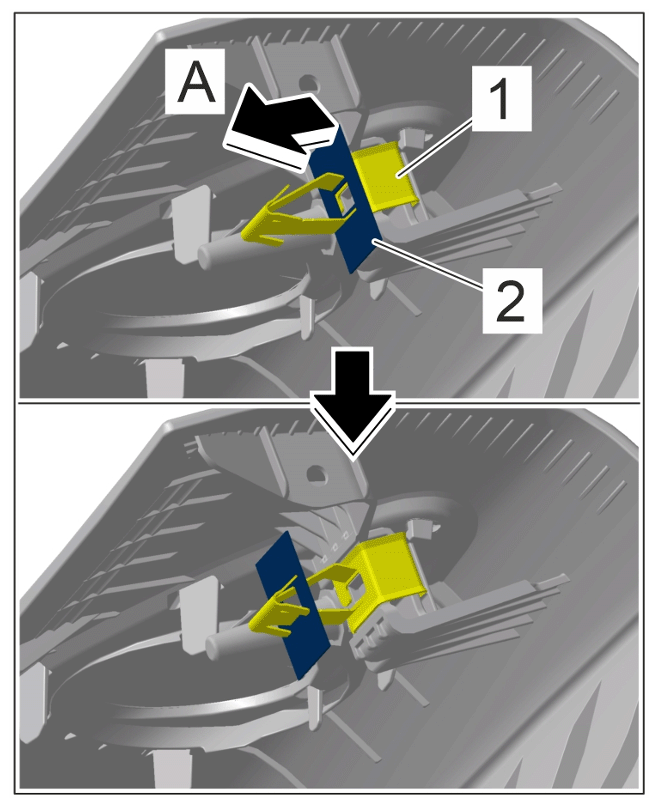

1. Position retaining clip -1-  in A-pillar trim panel and move assembly aid -2-  into position -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining clip
