Removing Carpet On Passenger's Side

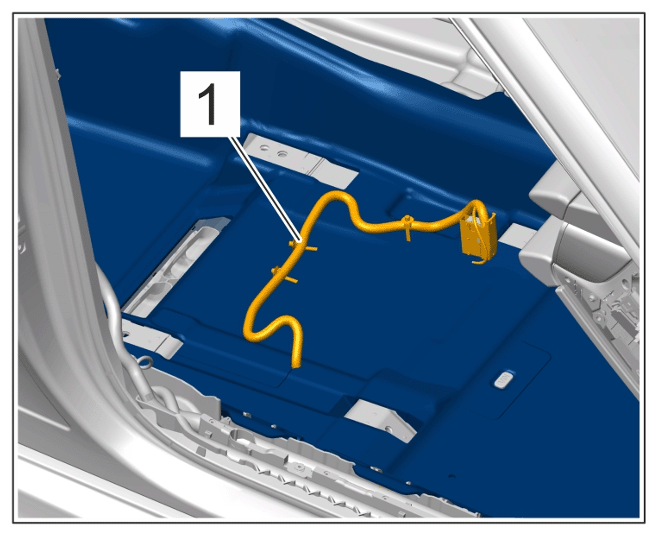

  1. Guide out wiring harness for front seat -1-  through the slit in the carpet on the passenger's side.
    G15564976Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring harness for front seat

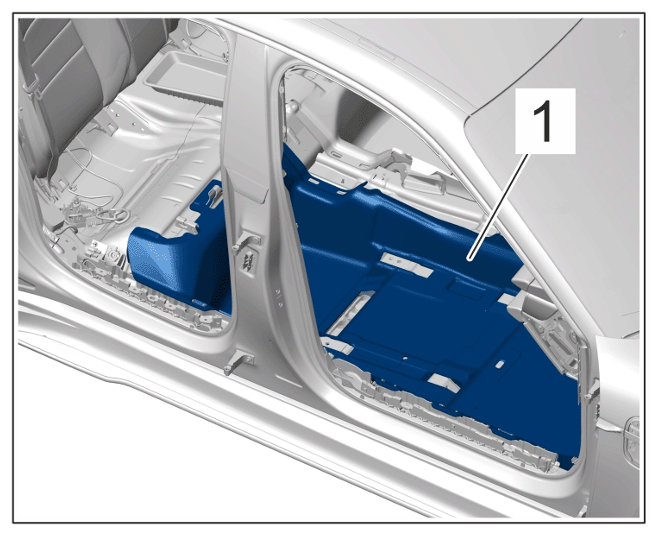

  2. Remove carpet on passenger's side -1-  .
    G15564977Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carpet on passenger's side.
