Removing Carpet On Driver's Side

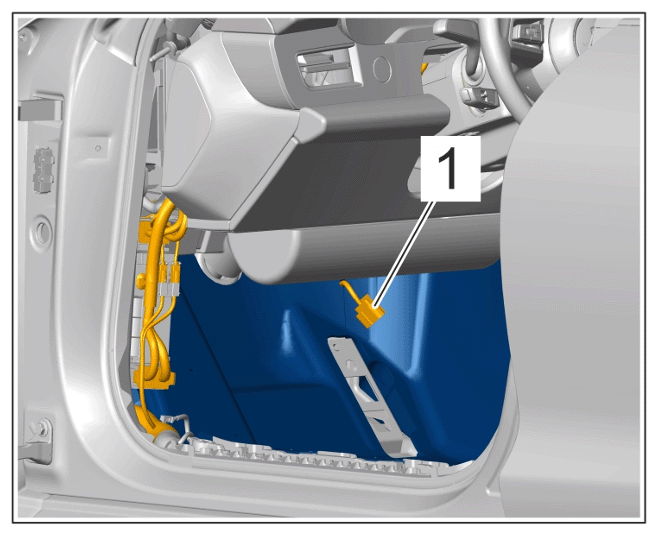

  1. Guide out wiring harness for accelerator pedal module -1-  through the slit in the carpet on the driver's side.
    G15564972Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring harness for accelerator pedal module

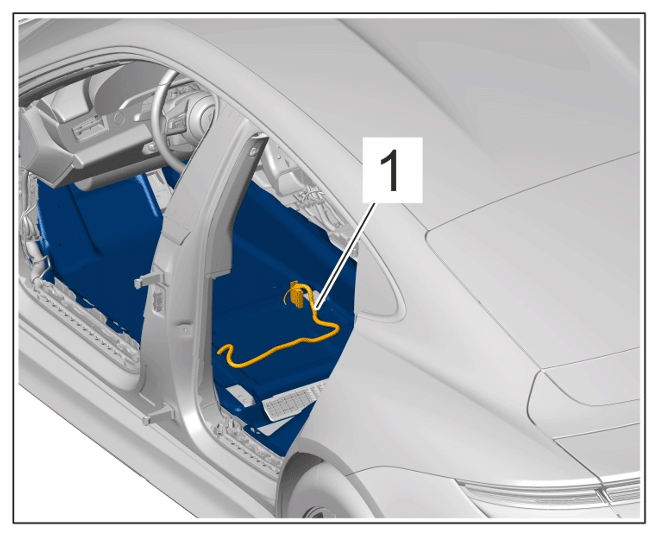

  2. Guide out wiring harness for front seat -1-  through the slit in the carpet on the driver's side.
    G15564973Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring harness for front seat

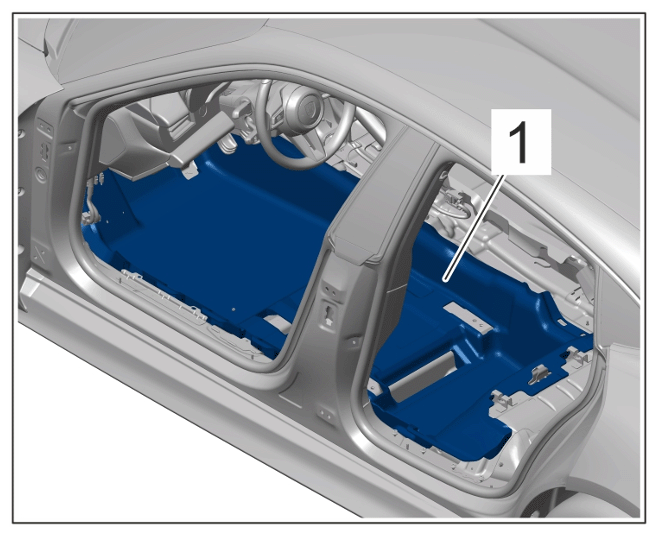

  3. Remove carpet on driver's side -1-  .
    G15564974Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carpet on driver's side
