Removing Luggage Compartment Cover

  1. Fold rear backrest forward.
  2. Remove luggage compartment cover -2-  .

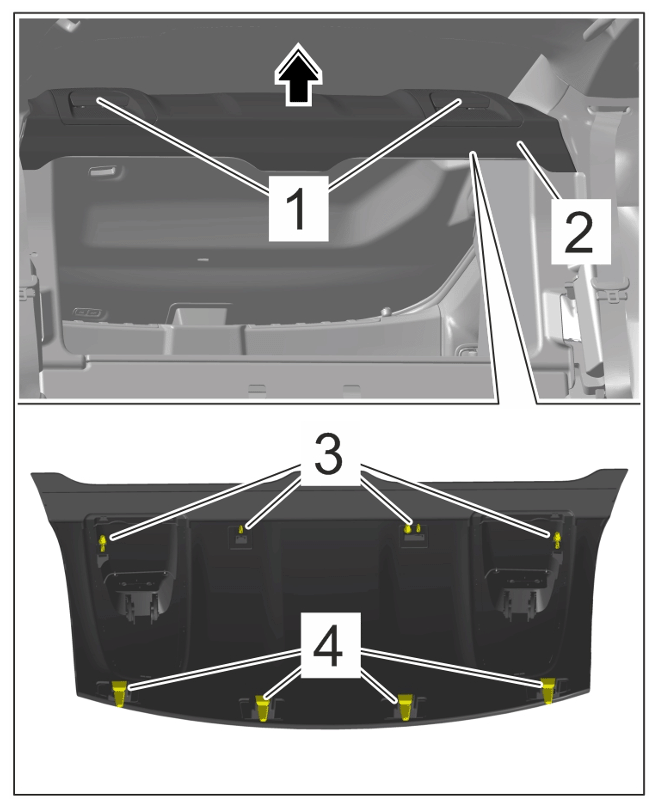

    G15564961Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Luggage compartment cover

    1. 2.1 Open cover -1-  .
    2. 2.2 Release clips -3-  .
    3. 2.3 Guide luggage compartment cover -2-  out of the locking pins -4-  .
    4. 2.4 Remove luggage compartment cover -2-  (-Arrow-  ).
