Removing Cover Under Dashboard (On Passenger's Side)

  1. Remove cover under dashboard (on passenger's side) -2-  .

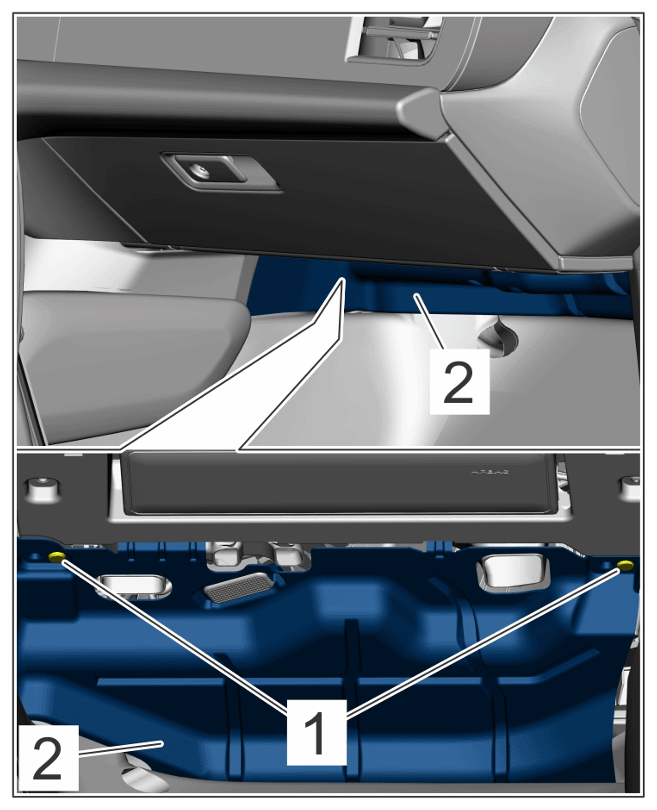

    G15564957Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Expansion rivet

    1. 1.1 Release expansion rivets -1-  and pull them out.
    2. 1.2 Unclip cover under dashboard (on passenger's side) -2-  and remove it.
