Technical Values

Location	Description	Type	Basic value

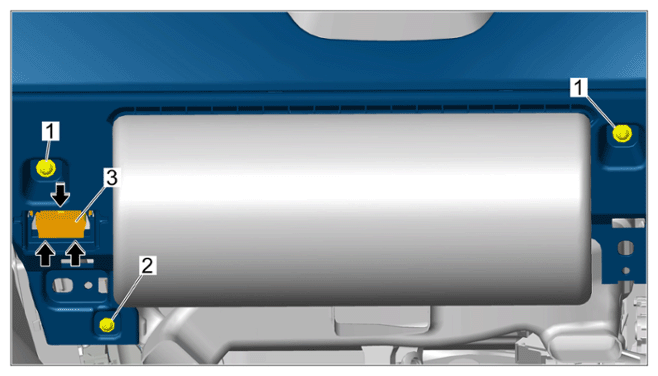

Top screw securing trim panel under dashboard to dashboard	Item 1	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Side screw securing trim panel under dashboard to dashboard	Item 1	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

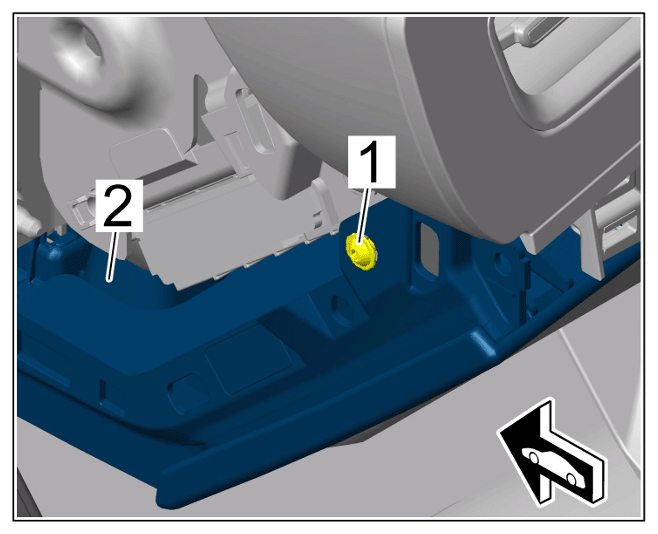

Bottom screw securing trim panel under dashboard to dashboard	Item 2	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

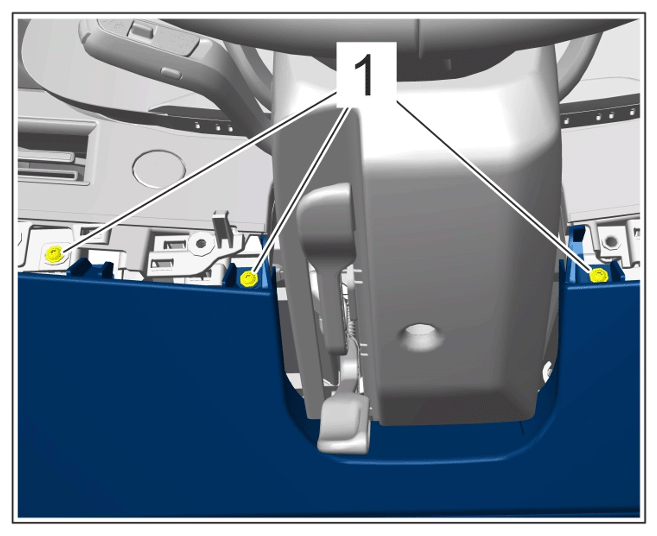

Screw securing trim panel under dashboard to dashboard	Item 1	Tightening torque	3 Nm (2.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
